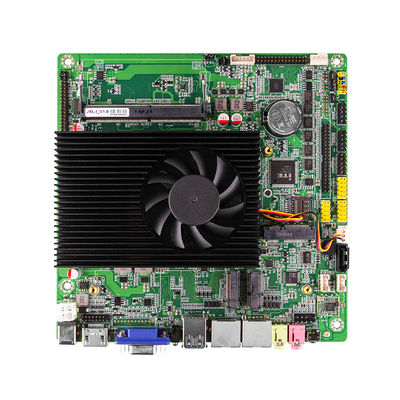

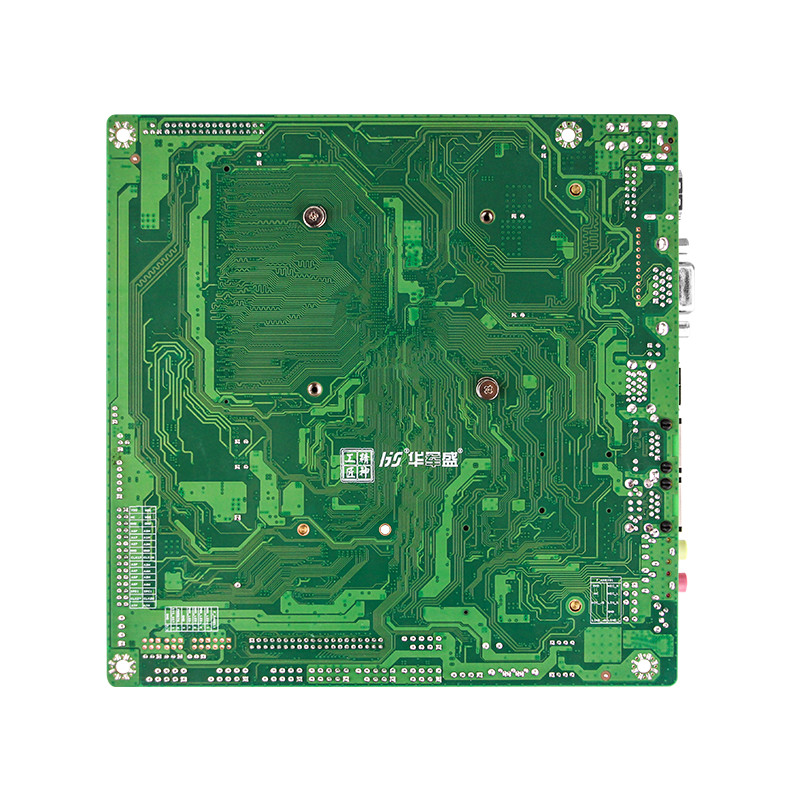

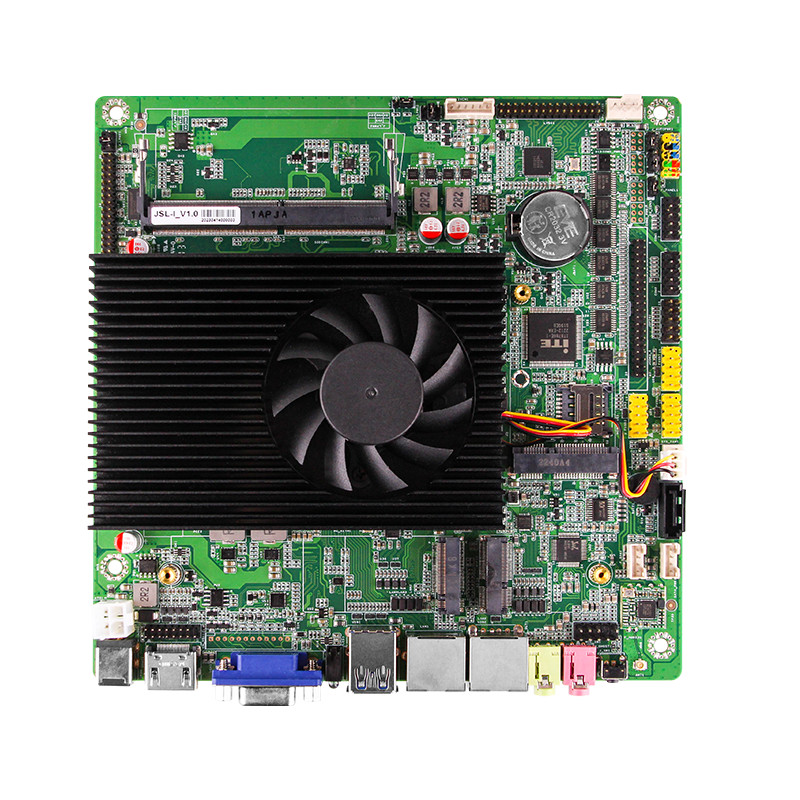

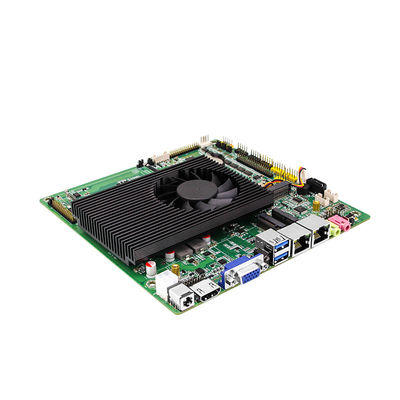

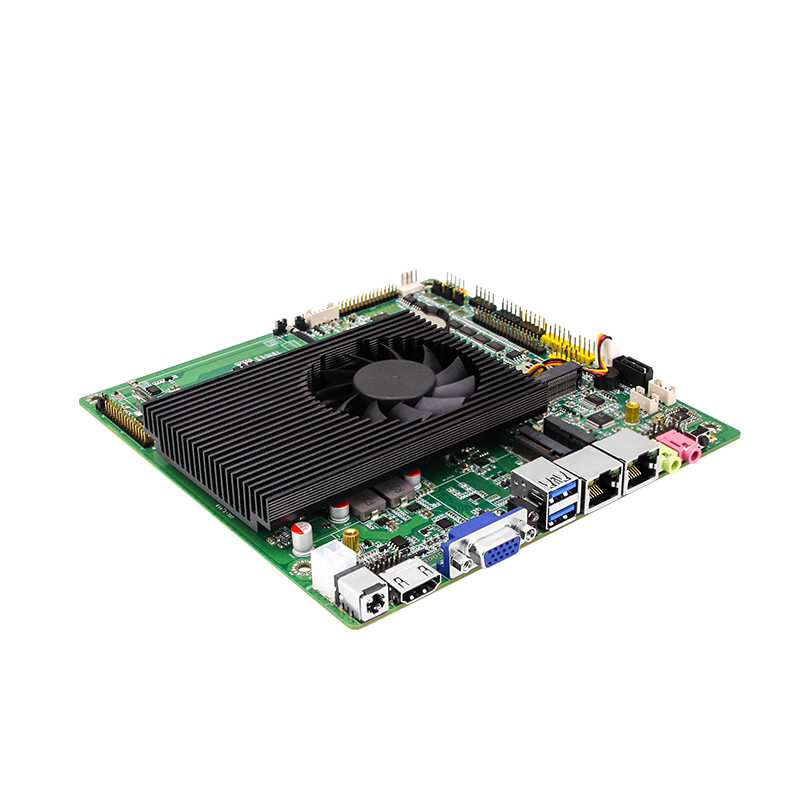

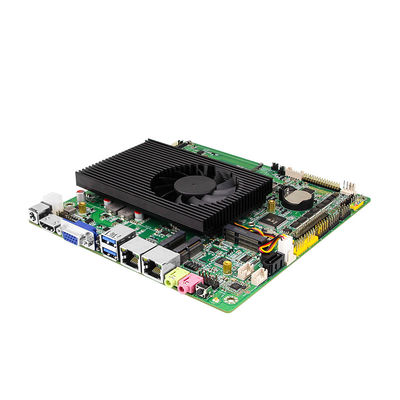

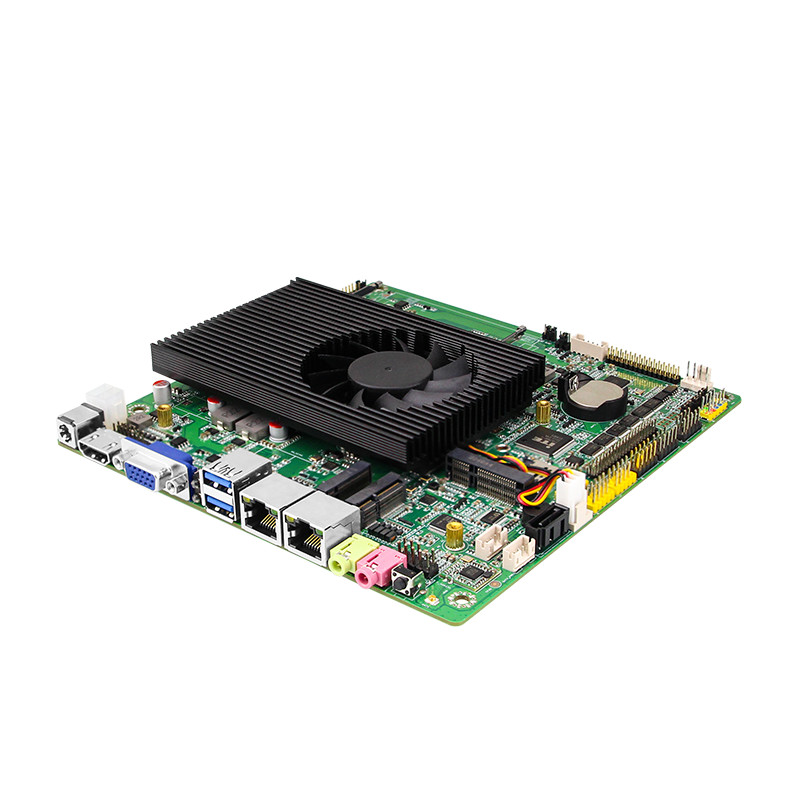

Inter Industrial PC Motherboard Celeron J1900 Motherboard Triple Diaplay
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-IPCMB-J1900 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel Celeron J1900 | Ram | 8 GB |
|---|---|---|---|
| Storage | SATA MSATA SSD | Interface | HDMI, VGA, LVDS/EDP |
| USB | USB 2.0x2, USB 3.0x2 | WIFI | Integration ALC897 HD Voice Card |
| Size | 170x170mm | Multi Displays | Triple Display |
| Highlight | Inter Industrial PC Motherboard,Industrial PC Motherboard Celeron J1900,Celeron J1900 Motherboard Triple Diaplay |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Industrial PC Motherboard for Inter Celeron J1900 Triple Diaplay Support Win10/Linux OS
Products Description
Features
* Intel IPCMB-J1900
* Supports Intel Celeron J1900 processor
* 1 x channel DDR3 Memory
* 1 x 7PIN SATA, 1 x MSATA
* 2 x USB2.0, 2 x USB3.0
* Displays:1 x HDMI, 1 x VGA, 1 x LVDS, 1 x EDP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | Intel@ Bay Trail J1900 CPU |
| 2~2.42GHz | |
| BIOS Chip | W25Q64 |
| Memory | 1xSO-DIMMDDR3 |
| 8GB | |
| Storage | 1x7PIN SATA,1xMSATA |
| Power Supply | Intel Standard Port Power Supply, DC 12V@5A |
| 3.5mm DC-IN seat DC adapter Input | |
| Display Interface | 1xHDMI Type-A 1920x1080@60Hz |
| 1xVGA 1920x1080@60Hz | |
|
1xLVDS 1920x1080@60Hz |
|
| 1xEDP 1920x1080@60Hz | |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Net Interface | 2xRTL 8111 Gigabit Ethernet |
| 2xRJ45 port 10/100/1000Mbps, 1 x mini PCIE WIFI port | |
| WIFI | Integration ALC897 HD Voice Card |
| Audio Frequency | Audio output |
| Mic input | |
| COM port | 6xCOM Support RS232 |
| Expansion Plate End | 1xMSATA SSD, 1xM.2 WIFI, 1x7PIN SATA |
| 1xmini PCIE WIFI Port | |
| 1x7PIN SATA Port | |
| Fan | 1x4PIN_FAN 12 Constant Speed |
| Size | 170x170 mm |
