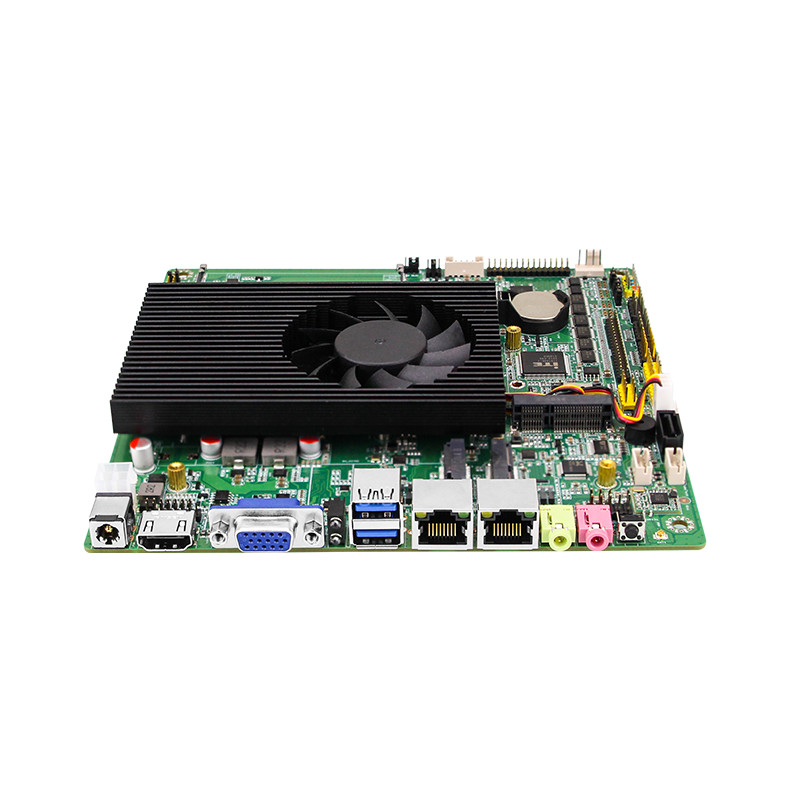

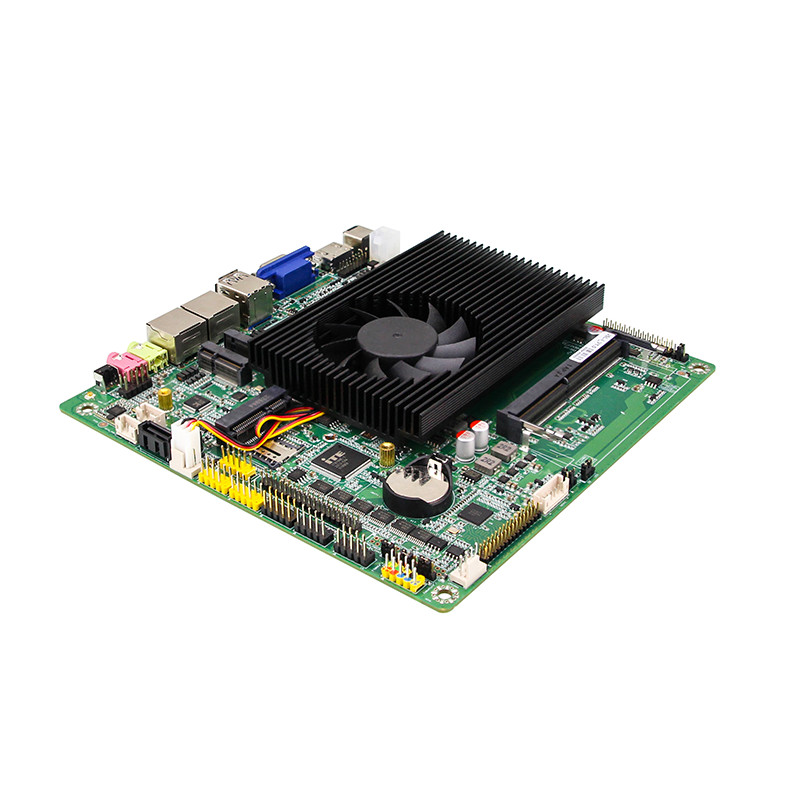

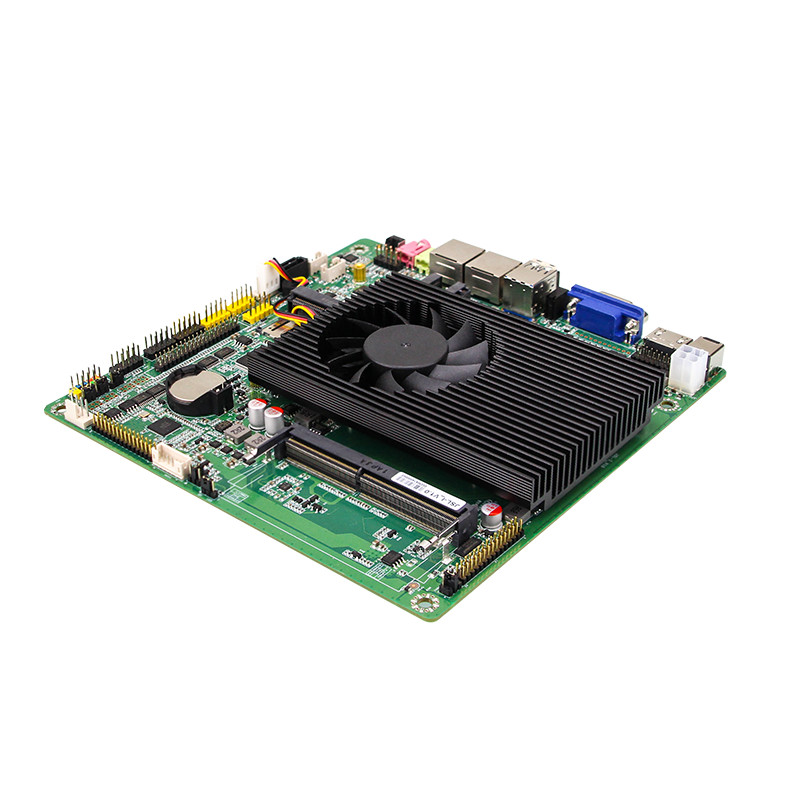

DDR4 16GB Industrial PC Motherboard Intel Jasper Lake N5095 Motherboard
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-IPCMB-JSL |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel Jasper Lake N5095 | Ram | 16 GB |
|---|---|---|---|
| Storage | SATA MSATA SSD | Interface | HDMI, VGA, LVDS/EDP |
| USB | USB 2.0x3, USB 3.0x2 | WIFI | Support 4G/5G |
| Size | 170x170mm | Multi Displays | Triple Display |
| Highlight | 16GB Industrial PC Motherboard,Industrial PC Motherboard Jasper Lake,Intel N5095 Motherboard |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Industrial PC Motherboard Jasper Lake Intel N5095 DDR4 16GB RAM HDMI VGA LVDS/EDP Triple Diaplay
Products Description
Features
* Intel IPCMB-JSL
* Supports Intel Jasper Lake N5095 processor
* 1 x channel DDR4 Memory
* 1 x 7PIN SATA, 1 x MSATA
* 3 x USB2.0, 2 x USB3.0
* Displays:1 x HDMI, 1 x VGA, 1 x LVDS, 1 x EDP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | Intel@ Jasper Lake N5095 CPU |
| 2GHz | |
| BIOS Chip | W25Q128 |
| Memory | 1xSO-DIMMDDR4 |
| 16GB | |
| Storage | 1x7PIN SATA,1xMSATA |
| Power Supply | Standard Port Power Supply, DC 12V@5A |
| 3.5mm DC-IN seat DC adapter Input | |

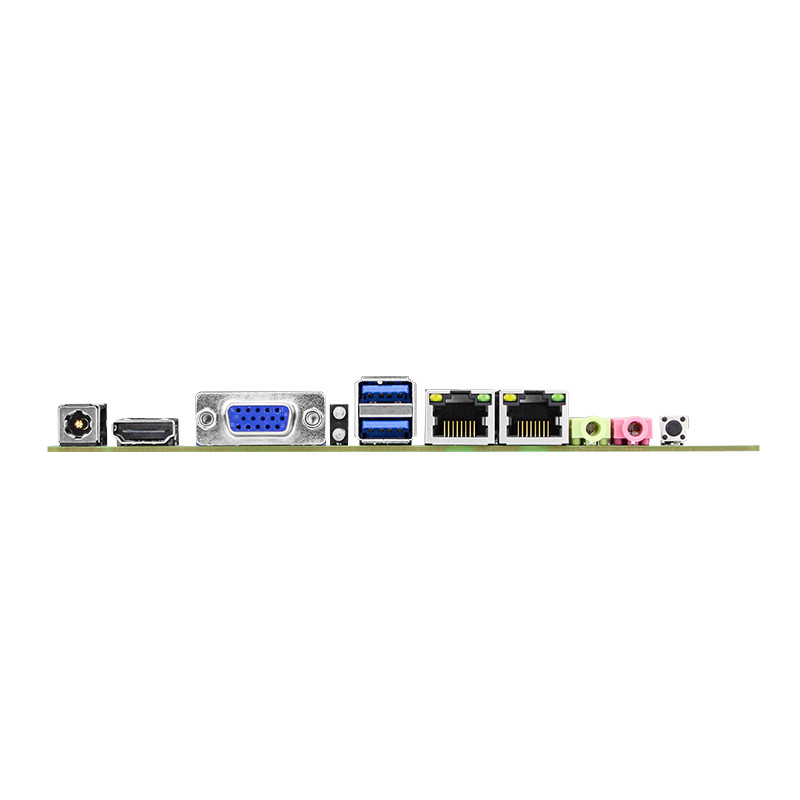

| Display Interface | 1xHDMI Type-A 3840x2160@60Hz |
| 1xVGA 1920x1080@30Hz | |
|
1xLVDS 1920x1080@60Hz |
|
| EDP LVDS 1920x1080@60Hz | |
| USB | 2 x USB 3.0, 3 x USB 2.0 |
| Net Interface | 2xRTL 8111 Gigabit Ethernet |
| 2xRJ45 port 10/100/1000Mbps | |
| WIFI | 1 x mini PCIE WIFI port, support 4/5G, reserve SIM card seat |
| Audio Frequency | Integration ALC897 HD sound card chip |
| Mic-In Line-Out | |
| COM port | 6xCOM, COM 1-2 Support RS485 |
| Expansion Plate End | 1xM.2 2280 SSD interface |
| 1xM.2 2230 WIFI interface | |
| 1xmini PCIE Communication module interface | |
| 1x7PIN SATA interface | |
| Fan | 1x4PIN_SYS FAN 12 Constant Speed |
| 1x4PIN_CPU FAN IO Controlled Speed | |
| Size | 170x170 mm |
