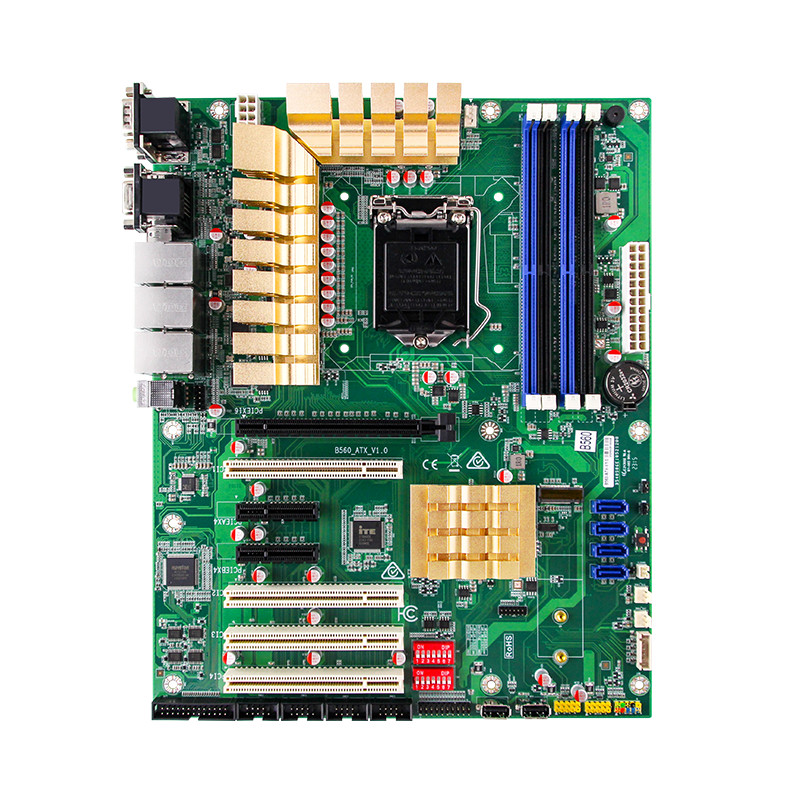

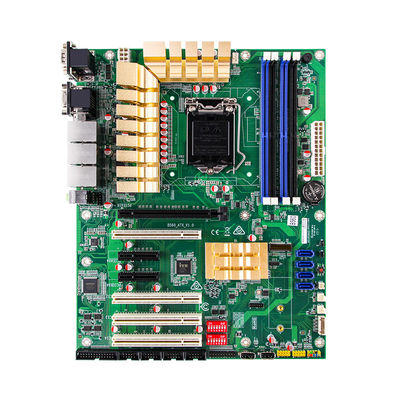

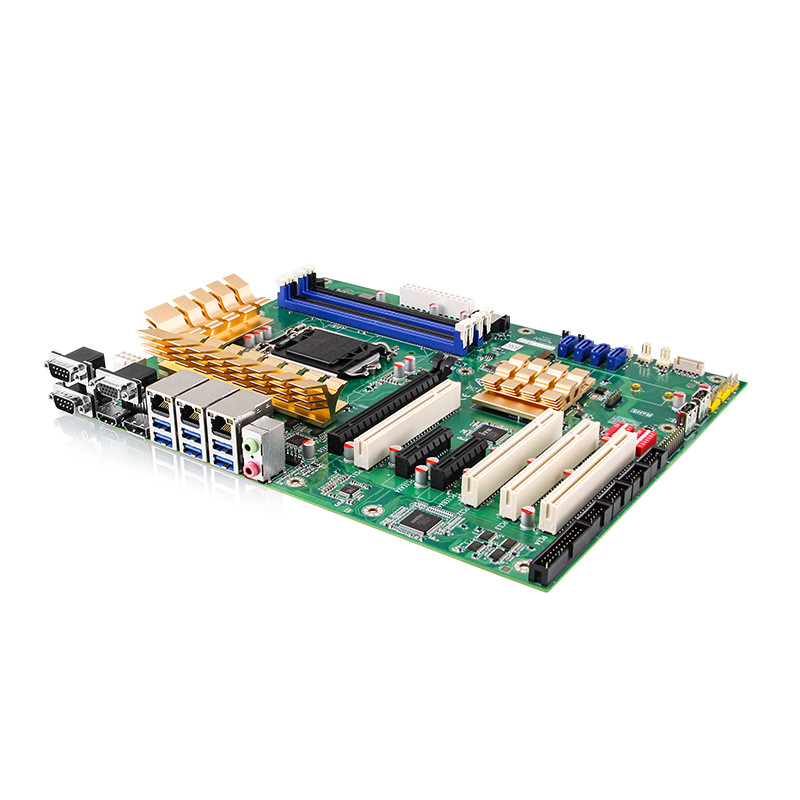

Smart City PC ATX Motherboard B560 I7 B560 10th Gen 305x244MM
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-ATX-B560 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 10th Gen Intel CPU | Ram | 4-128GB |
|---|---|---|---|
| Storage | 4xSATA,2xM.2280 | Interface | VGA,HDMI,DP |
| Muti Displays | Two Display | USB | USB2.0 Type-Ax2，USB3.0 Type-Ax6 |
| Internet | 2xIntel L211;1xIntel I219 | OS | Windows 7(Bit 64)/Windows 10/Linux(32/64 Bit) |
| Size | 305x244MM | ||
| Highlight | Smart City PC ATX Motherboard,PC ATX Motherboard 305x244MM,I7 B560 10th Gen 305x244MM |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
B560 I7 10th ATX 4xDDR4 128GB 2666MHz VGA HDMI DP Motherboard for Smart City
Products Description
Features
* Supports Intel 6th/7th/8th/9th Gen processor
* 4 x channel DDR4 Memory
* 4x7 Pin SATA,1xM.2280 SSD slot
* 8 xUSB2.0 Type-A/3.0 Type-A
* Internet:2xIntel l211;1xIntel I219
* Displays: HDMI , DP,VGA
* 12-19V DC
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Model | ATX-B560 |
| Product class | Standard ATX industrial large plate |
| Processor | Intel® B560 |
| Internal storage | 4xDDR4 (MAX128GB 2666MHz) |
| Display controller | CUP Integrated graphics |
|
Graphics card interface |
3x VGA+HDMI+DP support for independent graphics card |
| Hard drive | 4x7Pin SATA ,1xM.2280 SSD(NVME/SATA) |
| Audio | ALC897 Mic In and Line Out,1x2*5Pin 2.54mm |
|
Network |
Onboard intel 2xI211and 1xI219 Gigabit Internet chip,3 standard RJ 45 interface 10M / 100M / 1000M adaptive |
|
USB |
6xUSB2.0 Type-A ,2xUSB2.0 Type-A 2 USB 2.0 2*5Pin 2.54mm Double row pin 1 vertical USB |
| PS2 keyboard and mouse | 1x1X6 pin holder |
| LPT Interface | 1x2X13-2.54MM pin holder |
|
Serial port
|
6xCOM RS232,COM3-4supports RS485 COM1/COM2 DB9 |
| Figure I/O | 1 2*10-2.54MM pin holder |
| Power supply | ATX Power supply ,Supports ATX/AT boot mode |
| Expansion bus | 1xPCIEx16,2xPCIEx4,4xPCI |
| Operating temperature requirement | -10-60℃ |
| Operating humidity requirement | 5%-90% No condensation |
| Storage temperature requirement | -40-80℃ |
| Storage humidity requirement | 10%-90% No condensation |
| Watch Dog | Interrupt,system restart/225 level timed interval |
| Operating system | Windows 10 Linux(32/64 Bit)/Windows 7(64 Bit) |
| PCB color matching requirement | PCB uses the industrial green spraying |
| PCB Size | 305x244MM |
