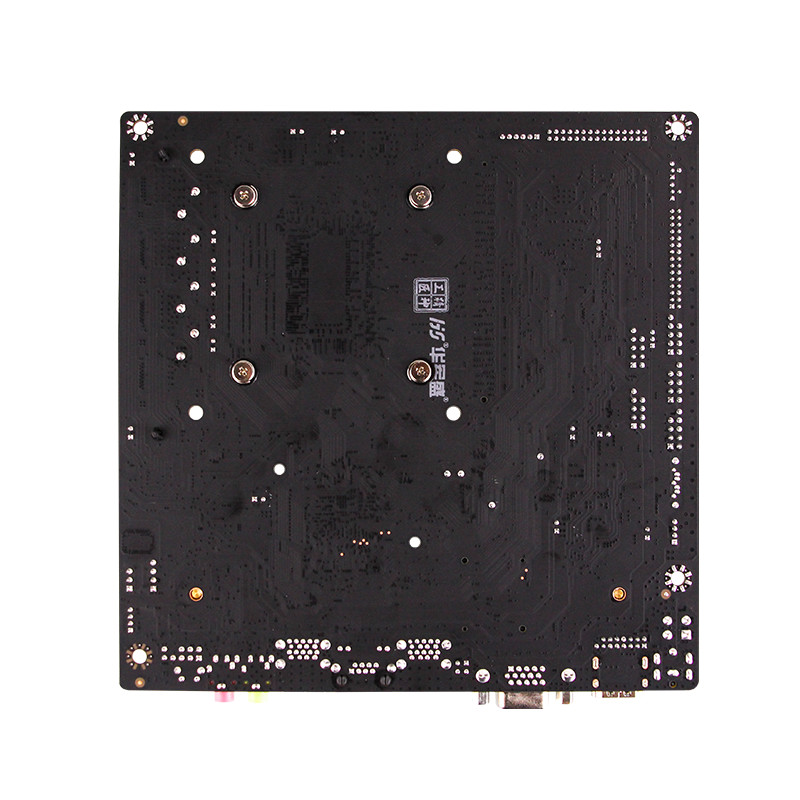

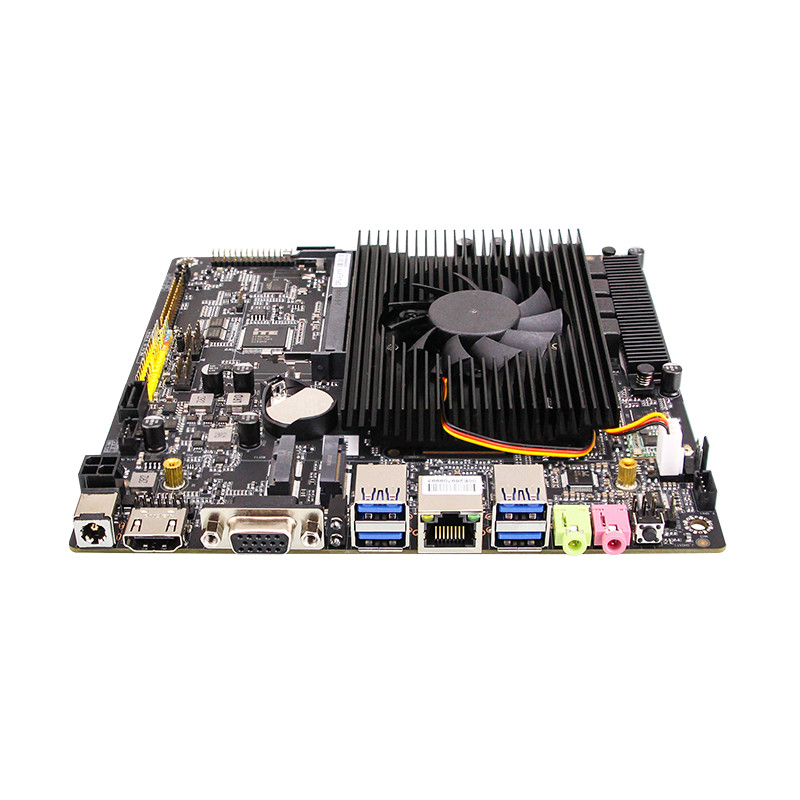

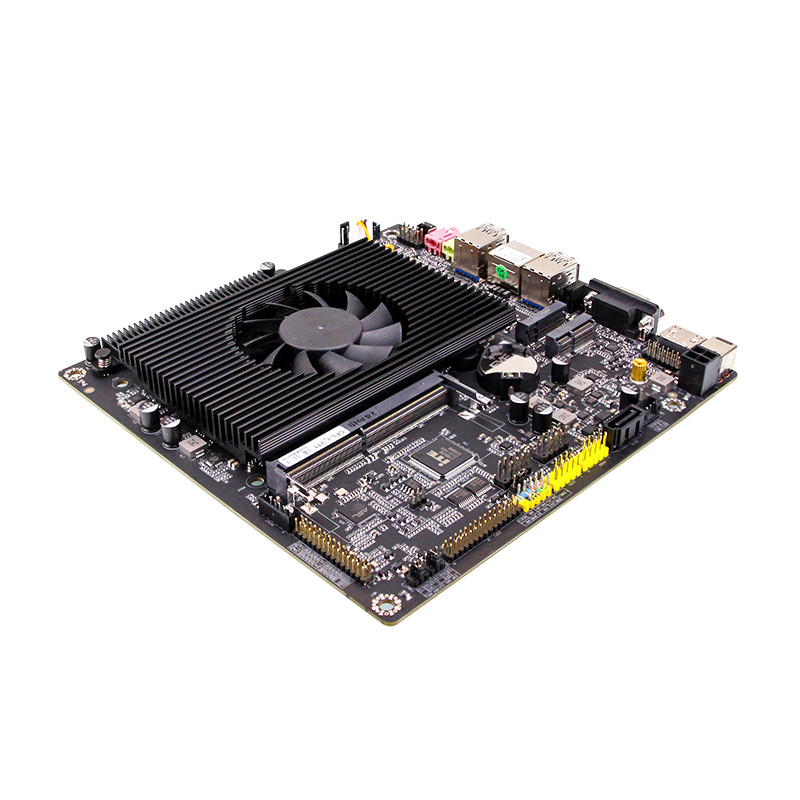

I7-10th Gen Laptop CPU Solution ITX Motherboard For Computers
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 10th Gen Intel CPU | Ram | 4-32G |
|---|---|---|---|
| Storage | M.2 2280 SSD | Interface | HDMI,VGA |
| Muti Displays | Two Display | USB | USB2.0x2，USB3.0x2, USB2.0x4(contact Pin) |
| WIFI | M.2-2230 5G | OS | Win7/11/12 Linux |
| Size | 170x170mm | ||
| Highlight | 10th Laptop CPU Solution ITX Motherboard,I7 Laptop CPU Solution ITX Motherboard,itx i7 motherboard Computers |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
CFL-I Intel@CometLake-S I7-10th Gen CPU ITX 2xDDR4 32GB Motherboard for laptop Computers
Products Description
Features
* Supports Intel 11th/12th Gen processor
* 2x channel DDR4 Memory
* 1 x M.2 2280 SSD slot
* 8 xUSB2.0/3.0
* M.2 2230 WIFI+Bluetooth
* Displays:1 x HDMI ,1 x VGA,1 x HDMI (80pin)
* 12v8A 90W
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@CometLake-S I7-10th Gen CPU |
| Graphics | Chipset | H110 |
| VRAM | 32GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI1.4,resolution 3840x2160@30Hz | |
| 1xVGA,resolution1920x1080@30Hz | ||
| 1x80pinCon. lvds, resolution1920x1080@30Hz | ||
| Memory | Type | 2xSO-DIMMDDR4 |
| Max | 32GB | |
| Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xM.2 2280 | |
| Storage | Type | SSD |
| Interface | 1 x M.2 2280 | |

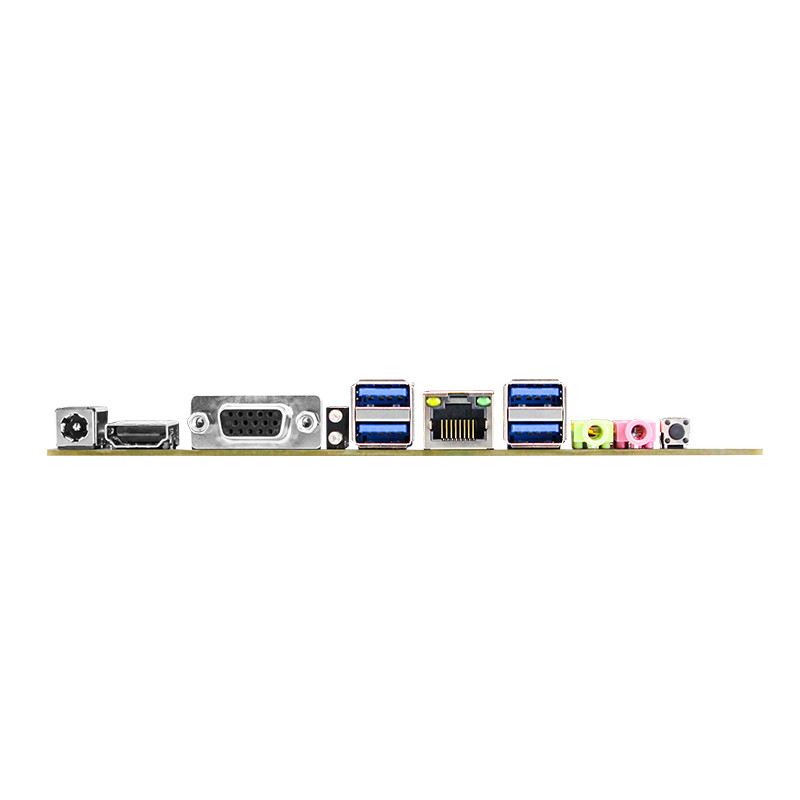

| IO Interface | Front panel | 1xHDMI1.4, 3840x2160@30Hz |
| 1xVGA,1920x1080@30Hz | ||
| 4 x USB2.0 (contact pin),2xUSB 2.0 , 2x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMic In and 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Software | OS Supports | WINDOWS 7/10/11LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12v8A 90W , 2.5/5.5 DC Jack |
| Size | 170x170 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
