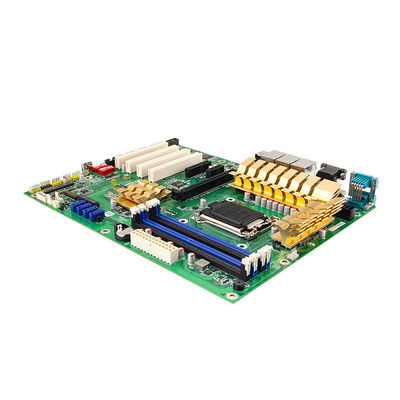

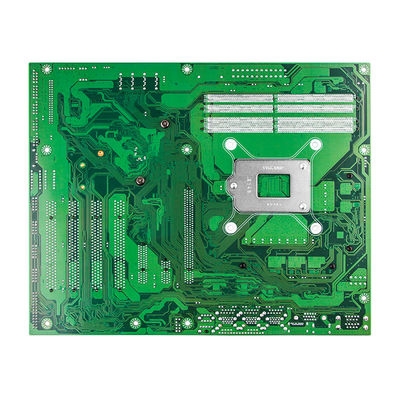

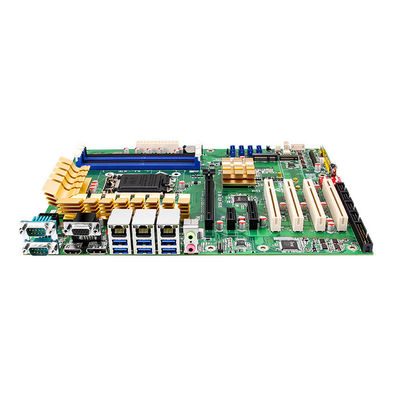

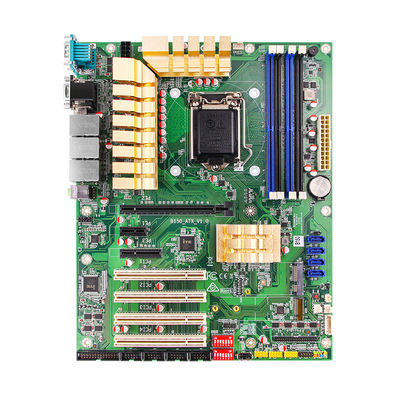

B150 9th Gen Intel Motherboard Micro Atx 4-64GB For Self Service Terminal
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-ATX-B150 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 9th Gen Intel CPU | Ram | 4-64GB |
|---|---|---|---|
| Storage | 1xMSATA,4xSATA,1xM.2 | Interface | VGA,HDMI,DP |
| Muti Displays | Two Display | USB | USB2.0x7，USB3.0x6 |
| Internet | 2xIntel L225V*22.5G;1xIntel 219 | OS | Windows 7(Bit 64)/Windows 10 |
| Size | 305x244MM | ||
| Highlight | B150 9th Gen Intel Motherboard Micro Atx,9th Gen Intel Motherboard Micro Atx 64GB |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
B150 Windows/Linux I9 9th ATX 4xDDR4 Motherboard for Self Service Terminal
Products Description
Features
* Supports Intel 6th/7th/8th/9th Gen processor
* 4 x channel DDR4 Memory
*1xMSATA,4xSATA,1xM.2 SSD slot
* 13 xUSB2.0/3.0
* Internet:2xIntel l225V*22.5G;1xIntel 219
* Displays: HDMI , DP,VGA
* 12-19V DC
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
| Model | ATX-B150 |
| Product class | Standard ATX industrial large plate |
| Processor | Intel® B150 |
| Internal storage | 4xDDR4 (MAX64GB) |
| Display controller | CUP Integrated graphics |
|
Graphics card interface |
3x VGA+HDMI+DP support for independent graphics card |
| Hard drive | 1xm SATA 4xSATA ,1xM.2 |
| Audio | 1xMic In and 1xLine Out |
| Network | 2*Intel®1225V chip*2 2.5G;1*Intel® 219 chip |
|
USB |
6xUSB3.0 7xUSB2.0 3 sets of 2x5 pins and USB interface in one motherboard |
| LPT Interface | 1 Parallel Port |
|
erial port
|
10 COM default RS232, including COM3-COM4 Support Rs485 |
|
Figure I/O
|
8-digit number I / O,Provide power supply and 5V battery |
| Power supply | ATX Power supply ,Supports ATX/AT boot mode |
| Expansion bus | PCIE*1,PCIE4*1,PCIE1*1,PCI*4 |
| Operating temperature requirement | -10-60℃ |
| Operating humidity requirement | 5%-90% No condensation |
| Storage temperature requirement | -40-80℃ |
| Storage humidity requirement | 10%-90% No condensation |
| Watch Dog | Interrupt,system restart/225 level timed interval |
| Operating system | Windows 7(Bit 64)/Windows 10 |
| PCB color matching requirement | PCB uses the industrial green spraying |
| PCB Size | 305x244MM |
