10th Gen Intel CPU OPS Pc I7 Supports 4K Display USB2.0/3.0/Type-C
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A06-I7G10 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 10th Gen Intel CPU | Ram | 4-32 GB |
|---|---|---|---|
| Storage | SATA SSD | Interface | HDMI, DP |
| USB | USB 2.0x4, USB 3.0x2, Type-C USB 3.0 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/42mm |
| Multi Displays | Two Display | ||
| Highlight | 10th Gen OPS Pc I7,Intel CPU OPS Pc I7,OPS I7 4K Display |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Sharp Series Intel Core I7 10th OPS PC Module Supports 4K Display USB2.0/3.0/Type-C
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 10th Gen processor
* 1 x channel DDR4 Memory
* M.2 2280 SSD (SATA)
* 4 x USB2.0, 2 x USB3.0, Type-C USB 3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x DP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@ CometLake-S I7-10700 CPU |
| Frequency | 2.9~4.8GHz | |
| Graphics | Chipset | H510 |
| VRAM | 32GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI 1.4, resolution 3840x2160 4k@30Hz | |
| 1xDP 1.2 3840x2160 4k@60Hz | ||
| 1xHDMI2.0, resolution 3840x2160 4k@60Hz | ||
| Memory | Type | 1xSO-DIMMDDR4 |
| Max | 32GB | |
| Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | M.2 2280 | |
| SATA | ||
| IO Interface | Front panel | 1xHDMI1.4, 3840x2160@4k30Hz |
|
1xDP1.2 3840x2160@4k60Hz |
||
| 4 x USB2.0, 2x USB3.0, Type-C USB 3.0 | ||
| 1 x RJ45 | ||
| two in one MIC IN and Line Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||

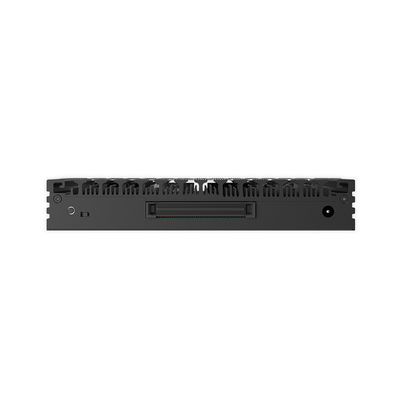

| Rear panel | 1x80pin:HDMI2.0, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
