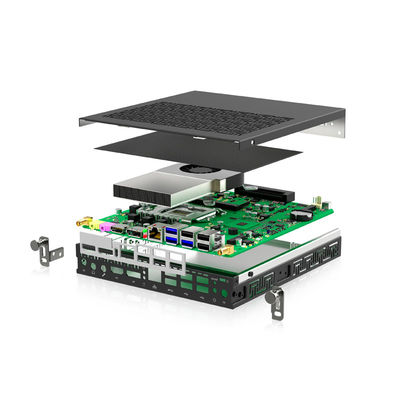

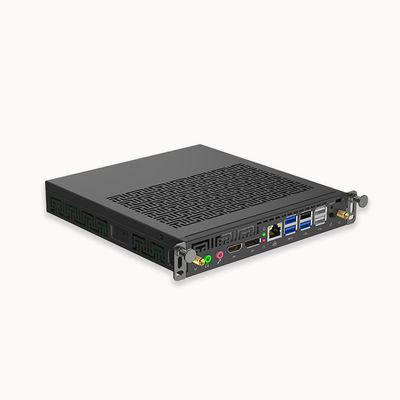

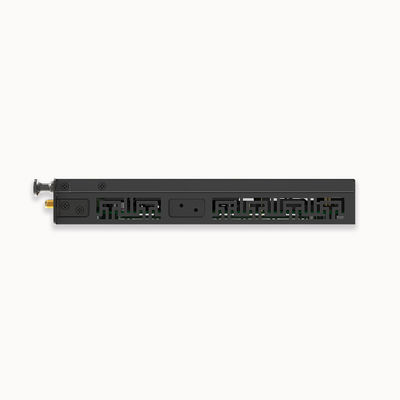

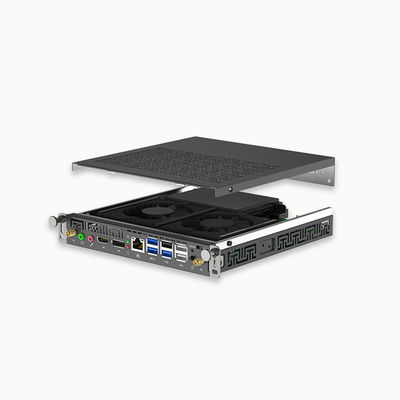

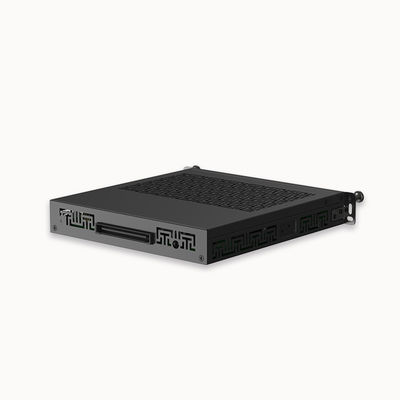

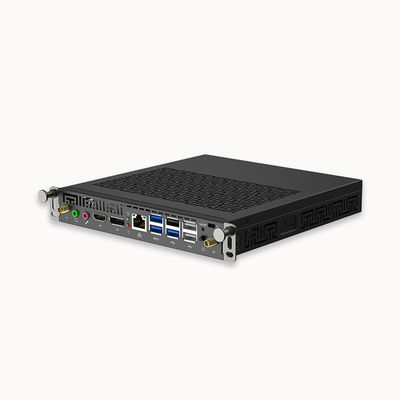

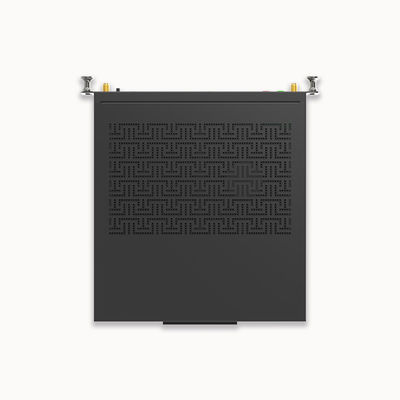

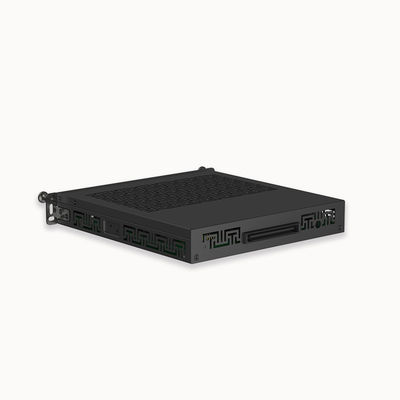

Window Series Intel Core I7 10750H Gen Interactive Flat Panel OPS MINI PC
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A04-I7G10 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 10th Gen Intel CPU | Ram | 4-16 GB |
|---|---|---|---|
| Storage | SATA SSD | Interface | HDMI, DP |
| USB | USB 2.0x3, USB 3.0x3 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/42mm |
| Multi Displays | Two Display |
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Window Series Intel Core I7 10750H Gen Interactive Flat Panel OPS MINI PC
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 10th Gen processor
* 1 x channel DDR4 Memory
* M.2 2280 SSD(SATA)
* 3 x USB2.0, 3 x USB3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x DP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@CometLake-S I7-10750H CPU |
| Frequency | 2.6~5.0GHz | |
| Graphics | Chipset | H510 |
| VRAM | 32GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI 1.4,resolution 3840x2160 4K@30Hz | |
| 1xDP 1.2 3840x2160 4K@60Hz | ||
| 1xHDMI 2.0,resolution 3840x2160 4K@60Hz | ||
| Memory | Type | 1xSO-DIMMDDR4 |
| Max | 32GB | |
| Ethernet | Lan IC | CometLake-S |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | M.2 2280 | |
| SATA | ||
| IO Interface | Front panel | 1xHDMI 1.4, 3840x2160 4K@30Hz |
|
1xDP 1.2 3840x2160 4K@60Hz |
||
| 3 x USB2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMIC IN, 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI1.4, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
