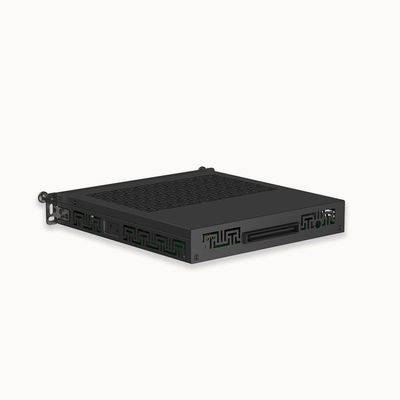

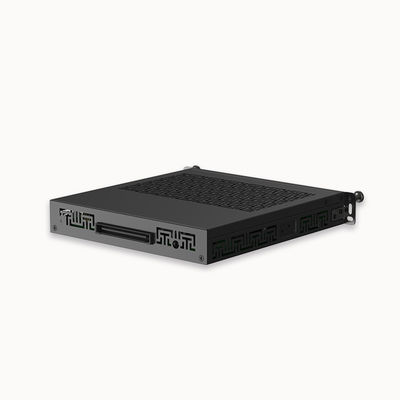

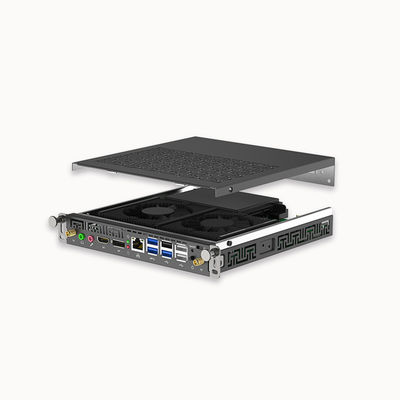

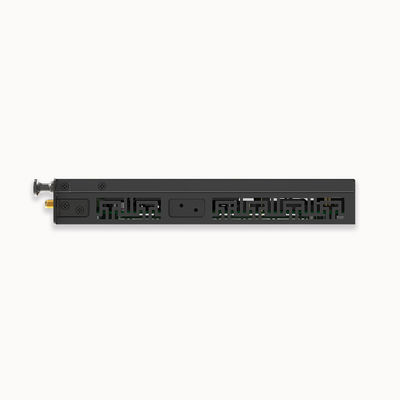

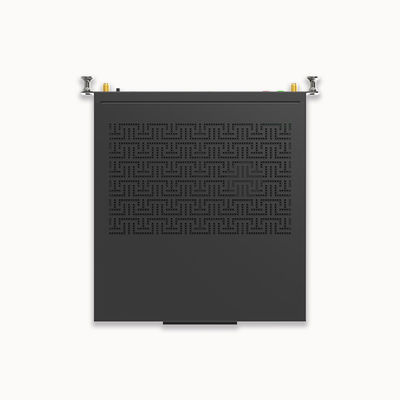

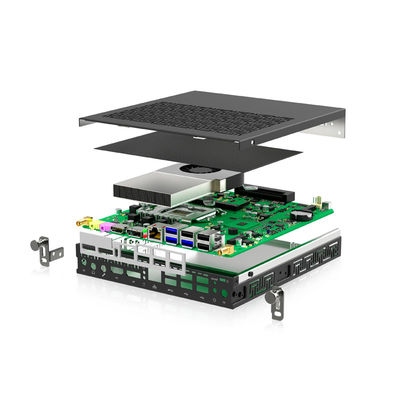

8th Gen Ops Pc I7 4k Display HDMI DP Interface MSATA SSD Storage
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A04-I7G8 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 8th Gen Intel CPU | Ram | 4-16 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, DP |
| USB | USB 2.0x3, USB 3.0x3 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/42mm |
| Multi Displays | Two Display | ||
| Highlight | Ops Pc I7 4k Display,8th Gen Ops Pc I7 |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Window Series Mini PC With Intel Core I7 8th Gen 4k Display OPS
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 8th Gen processor
* 1 x channel DDR3 Memory
* 1 x 7PIN SATA 1 x MSATA
* 3 x USB2.0, 3 x USB3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x DP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@ CoffeeLake I7-8700 CPU |
| Frequency | 3.2~4.6GHz | |
| Graphics | Chipset | H110 |
| VRAM | 16GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI 1.4,resolution 3840x2160 4k@30Hz | |
| 1xDP 1.2 3840x2160 4k@60Hz | ||
| 1xHDMI 2.0,resolution 3840x2160 4K@30Hz | ||
| Memory | Type | 1xSO-DIMMDDR3 |
| Max | 16GB | |
| Ethernet | Lan IC | 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | 1X7PIN SATA | |
| 1xMSATA | ||

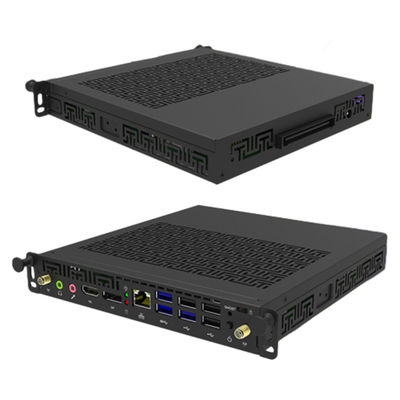

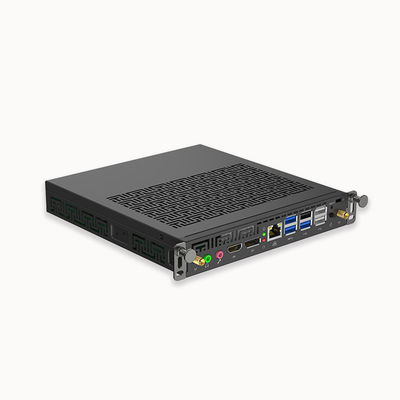

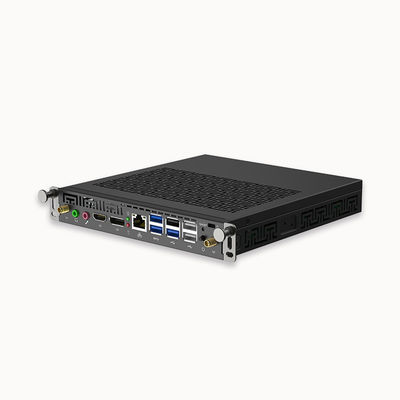

| IO Interface | Front panel | 1xHDMI1.4, 3840x2160 4K@30Hz |
|
1xDP 1.2 3840x2160 4K@60Hz |
||
| 3 x USB2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMIC IN, 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI1.4, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
