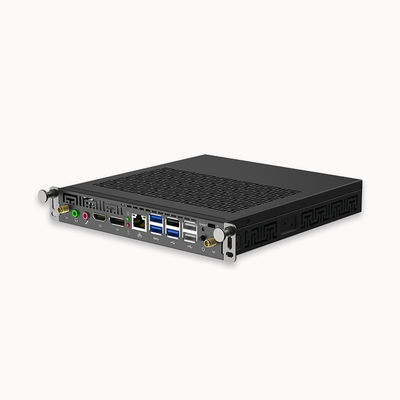

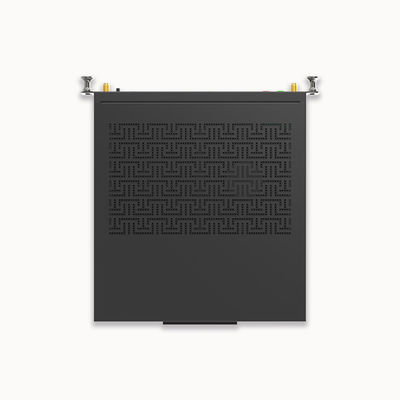

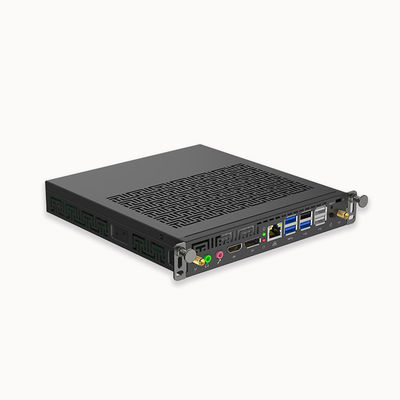

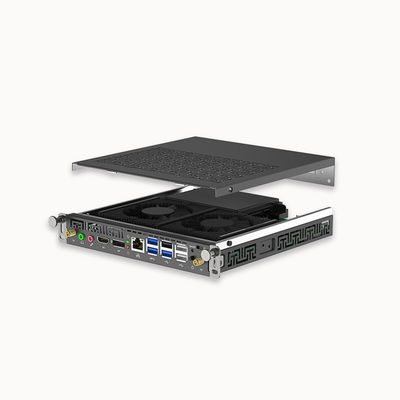

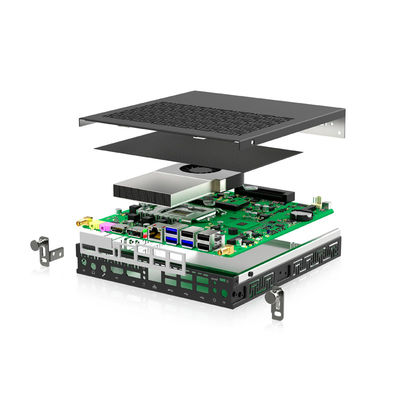

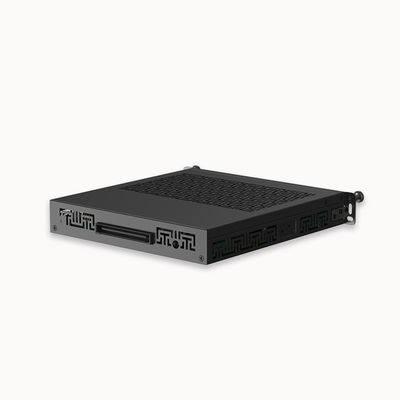

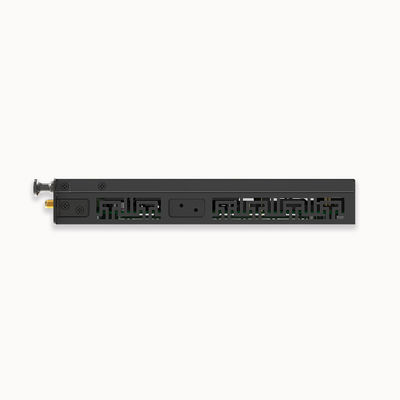

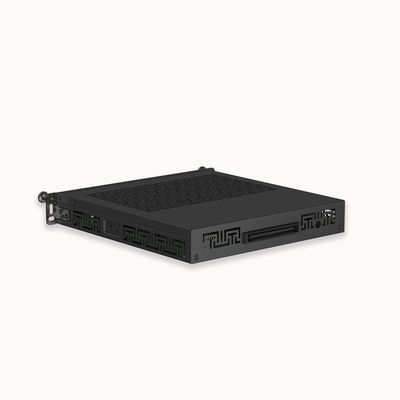

Win10&11&Linux 195mm Length OPS PC CE ROHS Intel Core I5 7th Gen
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A04-I5G7 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 7th Gen Intel CPU | Ram | 4-16 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, DP |
| USB | USB 2.0x3, USB 3.0x3 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/42mm |
| Multi Displays | Two Display | ||
| Highlight | 195mm Length OPS PC CE,195mm Length OPS PC ROHS |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Window Series Win10&11&Linux Mini Pc Computer Intel Core I5 7th Gen OPS MINI PC
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 7th Gen processor
* 1 x channel DDR3 Memory
* 1 x 7PIN SATA 1 x MSATA
* 3 x USB2.0, 3 x USB3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x DP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@ KabyLake I5-7400 CPU |
| Frequency | 3.0~3.5GHz | |
| Graphics | Chipset | H110 |
| VRAM | 16GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI 1.4,resolution 3840x2160 4k@30Hz | |
| 1xDP 1.2 3840x2160 4k@60Hz | ||
| 1xHDMI 2.0,resolution 3840x2160 4K@30Hz | ||
| Memory | Type | 1xSO-DIMMDDR3 |
| Max | 16GB | |
| Ethernet | Lan IC | 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | 1X7PIN SATA | |
| 1xMSATA | ||
| IO Interface | Front panel | 1xHDMI1.4, 3840x2160 4K@30Hz |
|
1xDP 1.2 3840x2160 4K@60Hz |
||
| 3 x USB2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMIC IN, 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI1.4, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
