4th Gen Ops Pc I7 Embedded Ops Computer Module Interactive Whiteboard
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A04-I7G4 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 4th Gen Intel CPU | Ram | 4-16 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, VGA |
| USB | USB 2.0x3, USB 3.0x3 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/42mm |
| Multi Displays | Two Display | ||
| Highlight | 4th Gen Ops Pc I7,Ops Pc I7 Embedded,Embedded Ops Computer Module |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Window Series 4th Gen Intel Core I7 DDR3 Interactive Whiteboard Embedded OPS Computer Module
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 4th Gen processor
* 2 x channel DDR3 Memory
* 1 x 7PIN SATA 1 x MSATA
* 3 x USB2.0, 3 x USB3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI, 1 x VGA
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@ Haswel I7-4770 CPU |
| Frequency | 3.4~3.9GHz | |
| Graphics | Chipset | B85 |
| VRAM | 16GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI1.4,resolution 3840x2160 @30Hz | |
| 1xVGA 1920x1080@60Hz | ||
| 1xHDMI1.4,resolution 3840x2160 @30Hz | ||
| Memory | Type | 2xSO-DIMMDDR3 |
| Max | 16GB | |
| Ethernet | Lan IC | 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | 1X7PIN SATA | |
| 1xMSATA | ||

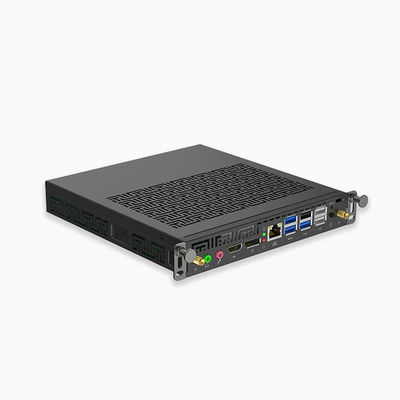

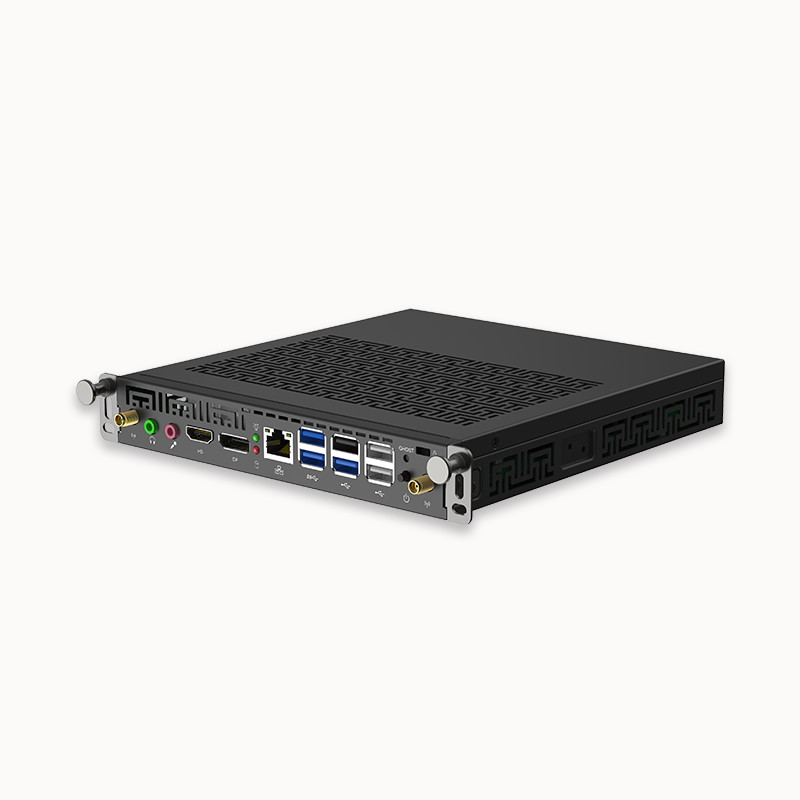

| IO Interface | Front panel | 1xHDMI1.4, 3840x2160@30Hz |
|
1xVGA 1920x1080@60Hz |
||
| 3 x USB2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMIC IN, 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI1.4, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
