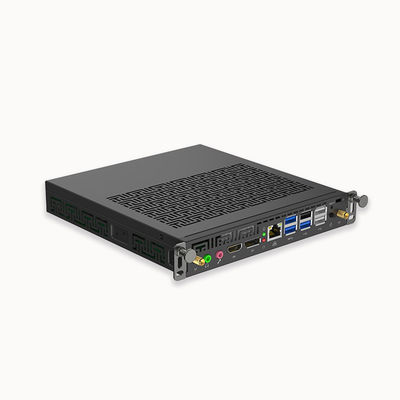

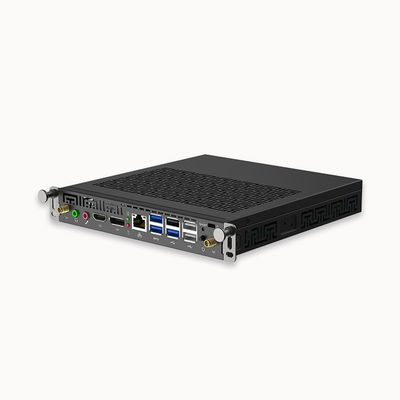

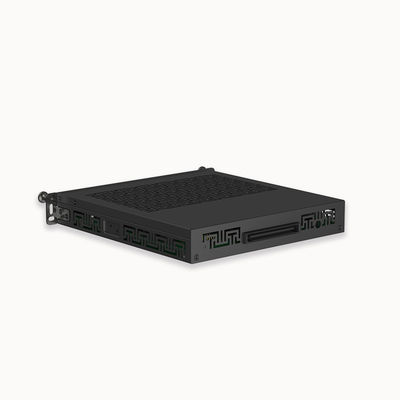

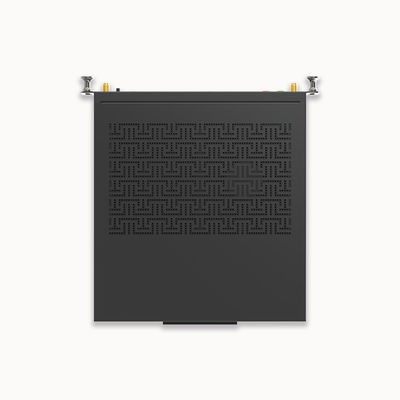

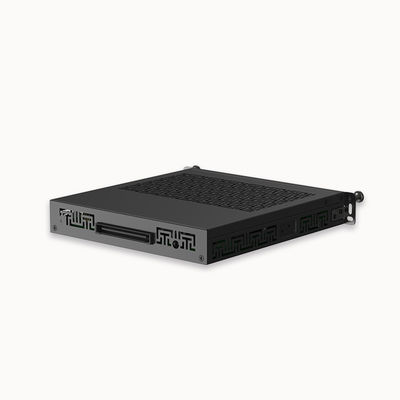

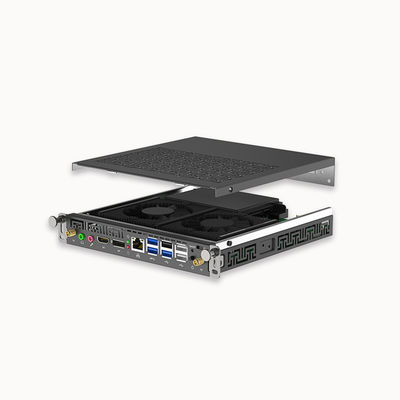

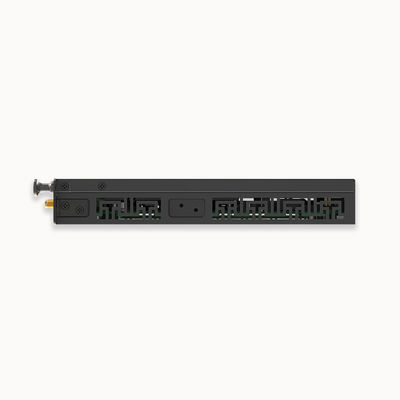

Intel I3 4th Gen 195mm Length OPS PC OPS MINI PC For Mobile
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A04-I3G10 (M) |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 10th Gen Intel CPU | Ram | 4-16 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, DP |
| USB | USB 2.0x3, USB 3.0x3 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/42mm |
| Multi Displays | Two Display | ||
| Highlight | I3 4th 195mm Length OPS PC,4th Gen 195mm Length OPS PC,OPS MINI PC Mobile |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Window Series Intel Core I3 4th Gen Interactive Flat Panel OPS MINI PC for Mobile
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 10th Gen processor
* 1 x channel DDR4 Memory
* 1 x 7PIN SATA 1 x MSATA
* 3 x USB2.0, 3 x USB3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x DP
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@CometLake-S I3-10100 CPU |
| Frequency | 3.6~4.3GHz | |
| Graphics | Chipset | H110 |
| VRAM | 16GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI 1.4,resolution 3840x2160 @30Hz | |
| 1xDP 1.2 3840x2160 @60Hz | ||
| 1xHDMI 2.0,resolution 3840x2160 @60Hz | ||
| Memory | Type | 1xSO-DIMMDDR4 |
| Max | 16GB | |
| Ethernet | Lan IC |
Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | 1X7PIN SATA | |
| 1xMSATA | ||
| IO Interface | Front panel | 1xHDMI 1.4, 3840x2160@30Hz |
|
1xDP 1.2 3840x2160@60Hz |
||
| 3 x USB2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMIC IN, 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI1.4, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
