Wall Series Intel Core I7 7th Gen Interactive Flat Panel OPS MINI PC
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A03-I7G7 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 7th Gen Intel CPU | Ram | 16 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, VGA |
| USB | USB 2.0x3, USB 3.0x3 | WIFI | M.2 2.4G/5G |
| OS | Win10/11 Linux | Size | 195 X 180 X 30/33/42mm |
| Multi Displays | Two Display |
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Wall Series Intel Core I7 7th Gen Interactive Flat Panel OPS MINI PC
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 7th Gen processor
* 1 x channel DDR3 Memory
* 1 x 7PIN SATA 1 x MSATA
* 3 x USB2.0, 3 x USB3.0
* Integrated 2.4g Wifi / Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x VGA
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@ kabyLake I7-7700 CPU |
| Frequency | 3.6~4.2GHz | |
| Graphics | Chipset | H110 |
| VRAM | 16GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI1.4,resolution 3840x2160 4k@30Hz | |
| 1xVGA 1920x1080@60Hz | ||
| 1xHDMI2.0,resolution 3840x2160 4k@60Hz | ||
| Memory | Type | 1xSO-DIMMDDR3 |
| Max | 16GB | |
| Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | Integrated / PCIE |
| Interface | 1xMSATA | |
| Storage | Type | SSD |
| Interface | 1X7PIN SATA | |
| 1xMSATA | ||

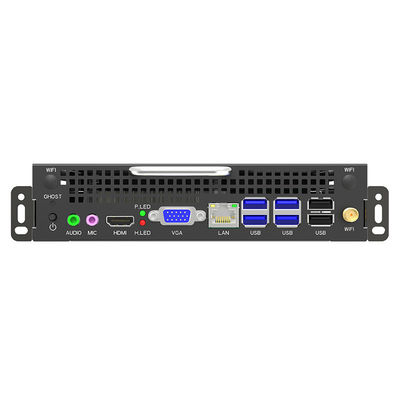

| IO Interface | Front panel | 1xHDMI1.4, 3840x2160@4k30Hz |
|
1xVGA 1920x1080@60Hz |
||
| 3 x USB2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMIC IN, 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||

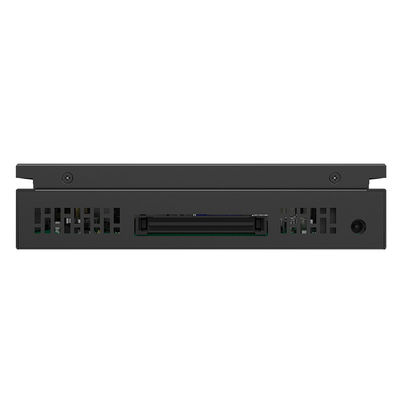

| Rear panel | 1x80pin:HDMI2.0, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11/LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 195x180x30/33/42 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
