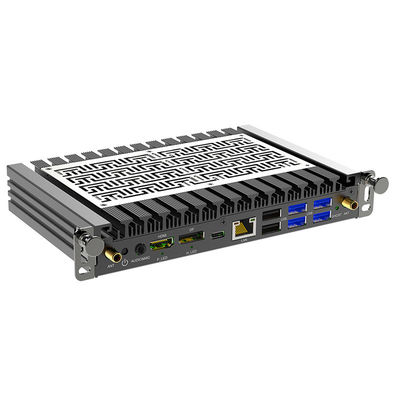

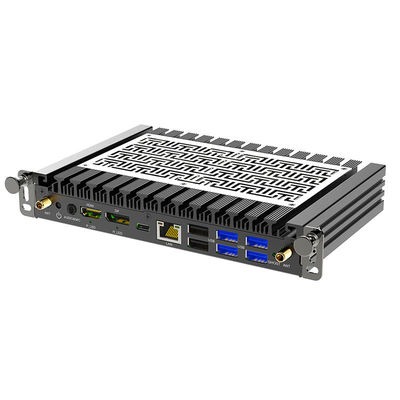

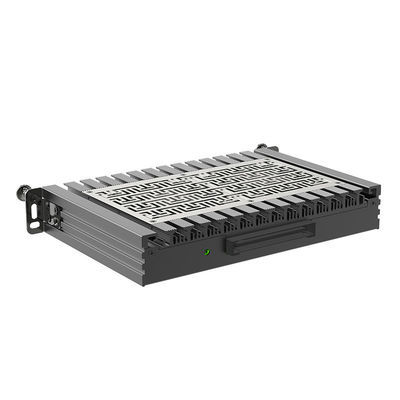

Intel Core I7 118mm Length OPS PC 8th Gen OPS Computer Module
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-OPS-A06-I7-8th |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 8th Gen Intel CPU | Ram | 4-32 GB |
|---|---|---|---|
| Storage | M.2 2280 SSD | Interface | HDMI,DP |
| Muti Displays | Two Display | USB | USB2.0x3，USB3.0x3,Type-C USSB3.0x1 |
| WIFI | M.2 2.4G/5G | OS | Win10/11 Linux |
| Size | 119x180x30MM | ||
| Highlight | Intel Core 118mm Length OPS PC,118mm Length OPS PC 8th Gen,8th Gen OPS Computer Module |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Sharp EU Series Intel Core I7 Interactive White Board Pluggable OPS PC Module
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 10th/11th Gen processor
* 1 x channel DDR4 Memory
* 1 x M.2 2280 SSD slot
* 3xUSB2.0/3xUSB3.0/1xType-c USB3.0
* Optional M.2 2.4G/5G Wifi + bluetooth
* Displays:1 x HDMI ,1 x DP,1 x HDMI (80pin)
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@CoffeeLake-I7-8700-CPU |
| Frequency | 3.2GHz-4.6GHz | |
| Graphics | Chipset | B150 |
| VRAM | 32GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI1.4,resolution 3840x2160 4K30Hz | |
| 1xDP1.2,resolution 3840x2160 4K60Hz | ||
| 1x80pinCon. HDMI2.0, resolution3840x2160 4K60Hz | ||
| Memory | Type | 1xSO-DIMMDDR4 |
| Max | 32GB | |
| Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE |
| Interface | 1xM.2 2280 | |
| Storage | Type | SSD |
| Interface | 1 x M.2 2280 | |

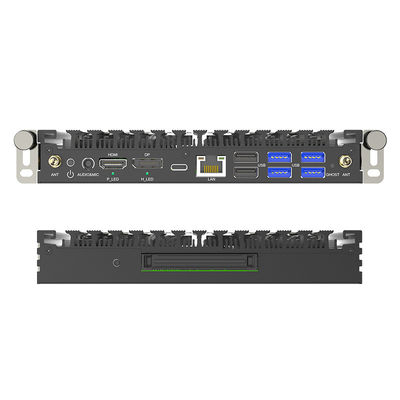

| IO Interface | Front panel | 1xHDMI1.4, 3840x2160 4K30Hz |
| 1xDP1.2, 3840x2160 4K60Hz | ||
| 1 x USB3.0Type-C ,3xUSB 2.0 , 3x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMic In and 1xLine Out(two in one) | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI2.0, 2 USB2.0 ,1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 119x180x30 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
