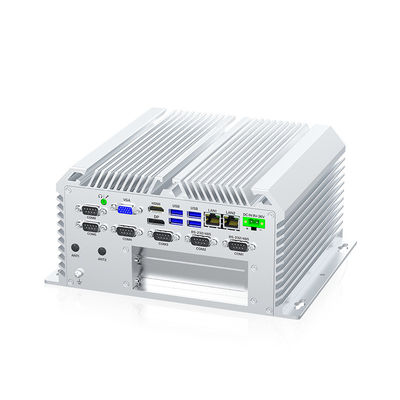

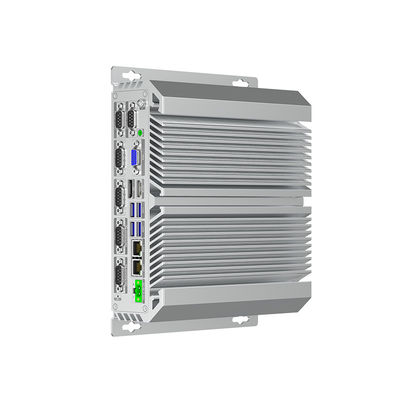

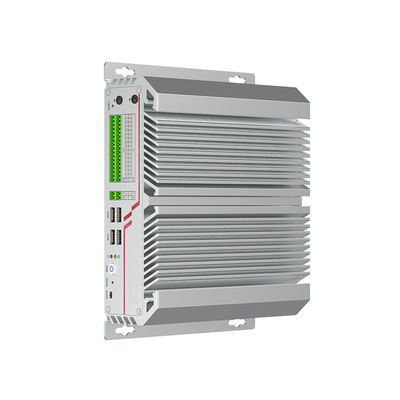

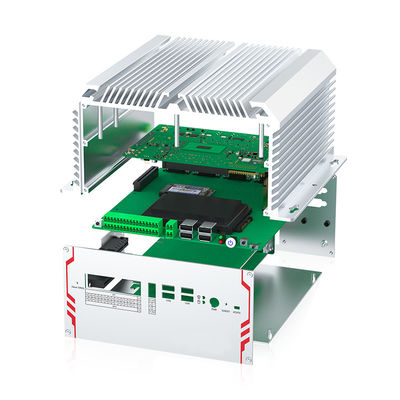

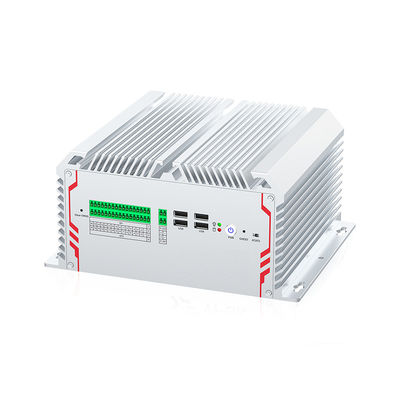

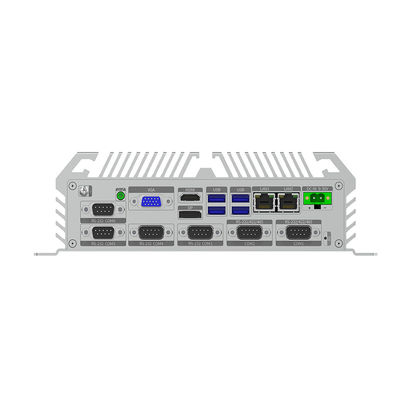

4K Mini OPS PC 12th Gen Embedded Computer DDR4 Ram8/16/ 32Interactive OPS Mini PC with Core I3 I5 I7
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-IPC-SC |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel BayTrail J1800/J1900 | Material | 8 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, VGA |
| USB | USB 2.0x3, USB 3.0x1 | WIFI | MINI-PICE WIFI |
| Size | 252x205x120mm | Multi Displays | Two Display |
| Nfc | Optional | Operating System | Windows 10 |
| Uhf Rfid | Optional | Display | 15.6 Inch LCD |
| Processor | Intel Core I5 | Fingerprint Scanner | Optional |
| Graphics | Intel HD Graphics | Key Words | Industrial Computer |
| Cpu | Intel I5 7th | Weight | 5 Lbs |
| Dimensions | 12 X 9 X 3 Inches | ||
| Highlight | Interactive OPS Mini PC,12th OPS Mini PC,4K OPS Mini PC |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
4K Mini OPS PC 12th Gen Embedded Computer DDR4 Ram8/16/ 32Interactive OPS Mini PC with Core I3 I5 I7
Products Description
Features
* Intel IPS-SC
* Supports Intel BayTrail J1800/J1900 processor
* 1 x channel DDR3 Memory
* 1 x M.2 2280(SATA), 1 x MSATA
* 3 x USB2.0, 1 x USB3.0
* Displays:1 x HDMI ,1 x VGA
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | Intel@ Bay Trail J1800/J1900 CPU |
| 2.0~2.42GHz | |
| Memory | 1xSO-DIMMDDR3 |
| 8GB | |
| Power Supply | Phoenix end 2PIN(JF1)seat |
| Above 12V5A | |
| Display Interface | 1xHDMI Type-A 1920x1200@60Hz |
| 1xVGA 1920x1080@60Hz | |
| Storage | 1xM.2 2280 SSD(SATA) |
| 1xMSATA | |
| Expansion Plate End | 1xMINI PCIE port |
| 1xMSIM card holder | |
| 6xD89 COM port | |
| 2xUSB2.0 Type-A | |
| 1xGPIO 8x8 interface, 1xfour-hole terminal: power switch and hard disk lamp | |
| USB | 1xUSB3.0, 3xUSB2.0 |
| Net Interface | Realtek 8111H Gigabit Ethernet |
| 2xRJ45 port 10/100/1000Mbps | |
| Audio Frequency | ALC897 HD sound card chip |
| (Mic-In Line-Out two in one 3.5mm) interface | |
| COM port | 6xD89 COM, COM1&COM2(RS485/RS232) |
| GPIO | 8xGPIO 8 in and 8 out |
| One-click restore | J_GHOST1 |
| One-key restart | J_SYSRST |
| self-starting | J_AT1 |
| Size | 218x120x65 mm |
