Embedded Industrial PC Intel Core I3 11th Support Dual Display
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-IPC-SC |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel I3 11th | Ram | 8 GB |
|---|---|---|---|
| Storage | MSATA SSD | Interface | HDMI, VGA |
| USB | USB 2.0x3, USB 3.0x1 | WIFI | MINI-PICE WIFI |
| Size | 218 X 120 X 65mm | Multi Displays | Two Display |
| Highlight | Industrial PC Intel Core,Industrial PC I3 11th |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.

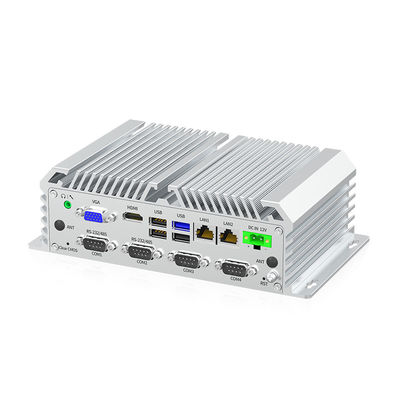

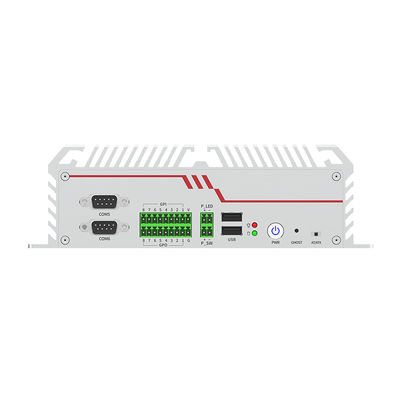

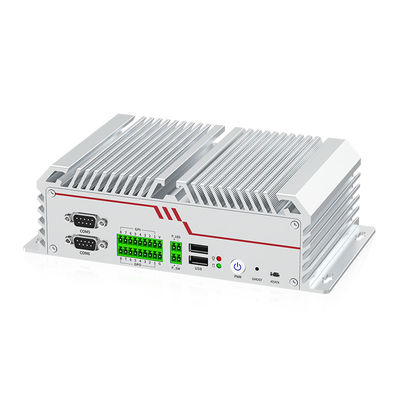

Small Crab Series Intel Core I3 11th Embedded Industrial PC Support Dual Display
Products Description
Features
* Intel IPS-SC
* Supports Intel Core I3 11th processor
* 1 x channel DDR3 Memory
* 1 x M.2 2280(SATA), 1 x MSATA
* 3 x USB2.0, 1 x USB3.0
* Displays:1 x HDMI ,1 x VGA
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | Intel Core I3 11th CPU |
| Memory | 1xSO-DIMMDDR3 |
| 8GB | |
| Power Supply | Phoenix end 2PIN(JF1)seat |
| Above 12V5A | |
| Display Interface | 1xHDMI Type-A 1920x1200@60Hz |
| 1xVGA 1920x1080@60Hz | |
| Storage | 1xM.2 2280 SSD(SATA) |
| 1xMSATA | |
| Expansion Plate End | 1xMINI PCIE port |
| 1xMSIM card holder | |
| 6xD89 COM port | |
| 2xUSB2.0 Type-A | |
| 1xGPIO 8x8 interface, 1xfour-hole terminal: power switch and hard disk lamp | |
| USB | 1xUSB3.0, 3xUSB2.0 |
| Net Interface | Realtek 8111H Gigabit Ethernet |
| 2xRJ45 port 10/100/1000Mbps | |
| Audio Frequency | ALC897 HD sound card chip |
| (Mic-In Line-Out two in one 3.5mm) interface | |
| COM port | 6xD89 COM, COM1&COM2(RS485/RS232) |
| GPIO | 8xGPIO 8 in and 8 out |
| One-click restore | J_GHOST1 |
| One-key restart | J_SYSRST |
| self-starting | J_AT1 |
| Size | 218x120x65 mm |
