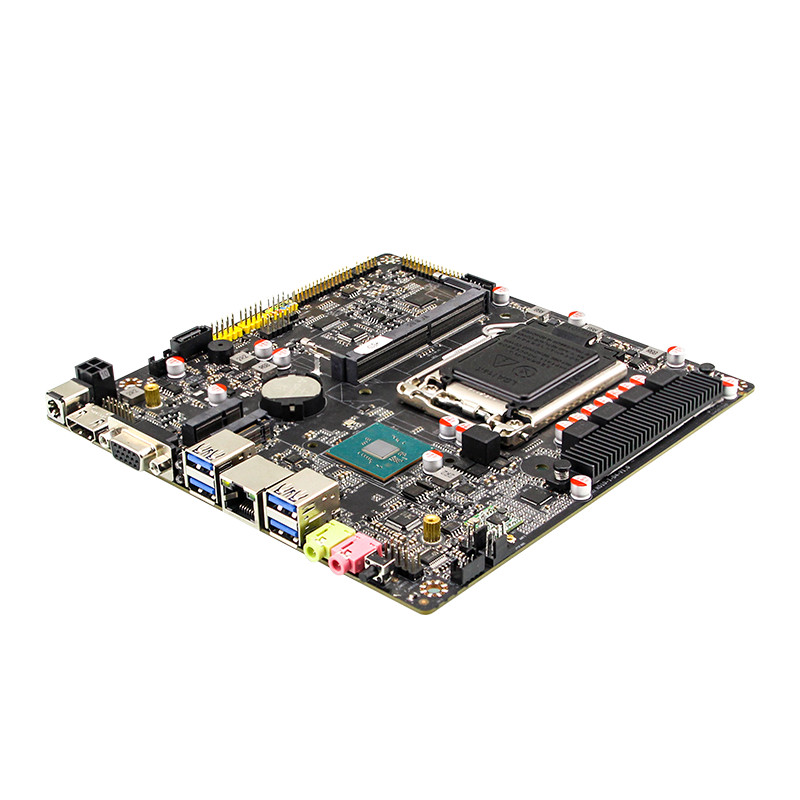

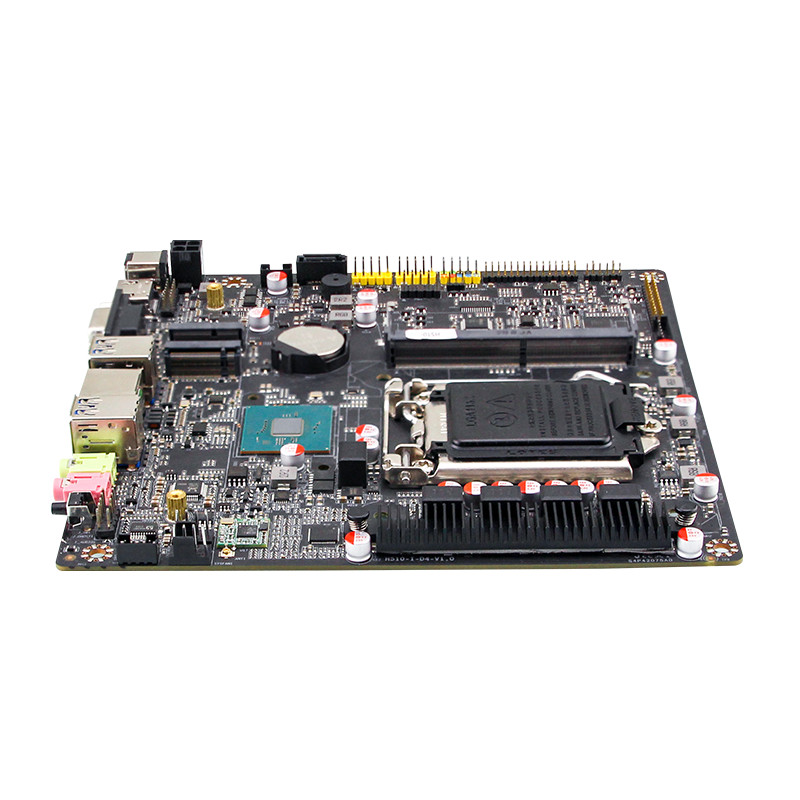

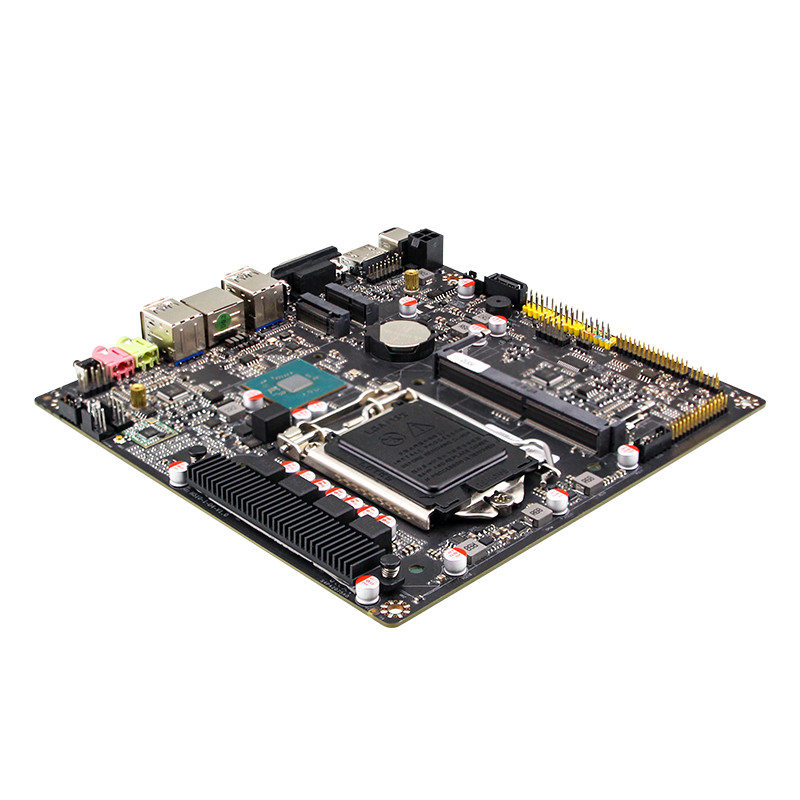

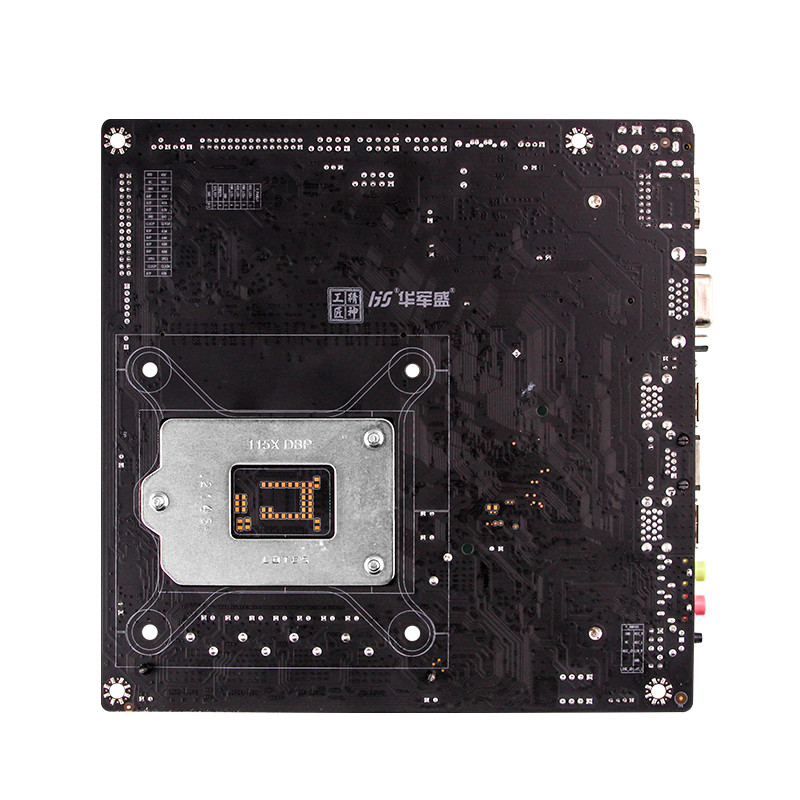

RocketLake-S Intel 11th Gen ITX Motherboard 4-64G M.2 2280 SSD
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 11th Gen Intel CPU | Ram | 4-64G |
|---|---|---|---|
| Storage | M.2 2280 SSD | Interface | HDMI,VGA |
| Muti Displays | Two Display | USB | USB2.0x2，USB3.0x2, USB2.0x4(contact Pin) |
| WIFI | M.2-2230 5G | OS | Win10/11 Linux |
| Size | 170x170mm | ||
| Highlight | RocketLake-S Intel 11th Gen ITX Motherboard,Intel 11th Gen ITX Motherboard 64G,11th Gen ITX Motherboard M.2 2280 SSD |
||
Product Description
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
H510 Intel@RocketLake-S I3-11th Gen CPU ITX Motherboard
Products Description
Features
* Supports Intel 10th/11th Gen processor
* 2x channel DDR4 Memory
* 1 x M.2 2280 SSD slot
* 8 xUSB2.0/3.0
* M.2 2230 WIFI+Bluetooth
* Displays:1 x HDMI ,1 x VGA,1 x HDMI (80pin)
* 12-19V DC
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@RocketLake-S I3-11th Gen CPU |
| Graphics | Chipset | H510 |
| VRAM | 64GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI1.4,resolution 3840x2160@30Hz | |
| 1xVGA,1xHDMI | ||
| 1x80pinCon. lvds, resolution1920x1080@30Hz | ||
| Memory | Type | 2xSO-DIMMDDR4 |
| Max | 64GB | |
| Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIE-X6 |
| Interface | 1xM.2 2230 | |
| Storage | Type | SSD |
| Interface | 1 x M.2 2280 | |

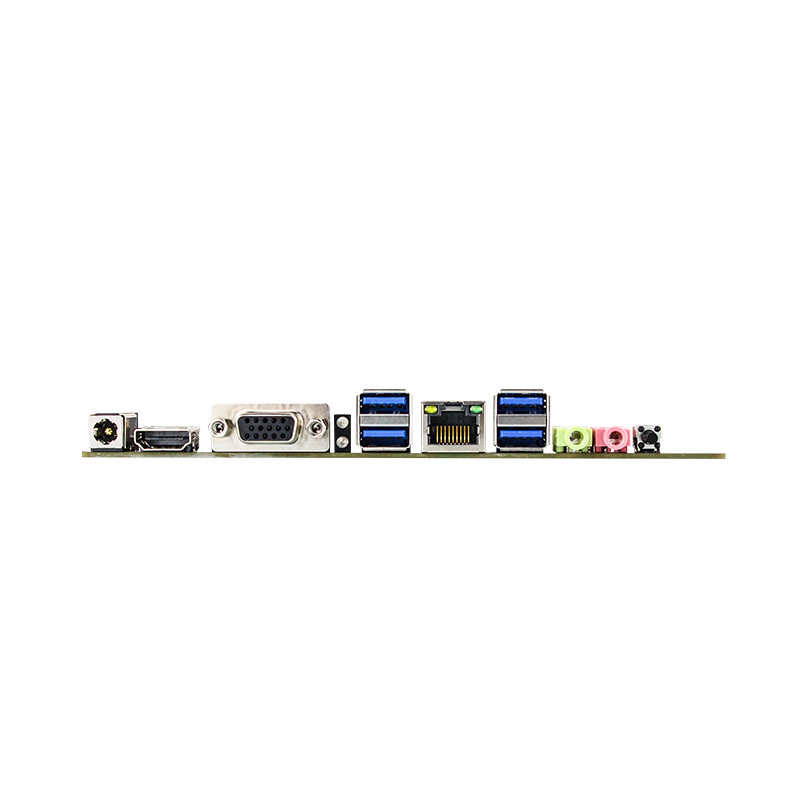

| IO Interface | Front panel | 1xHDMI1.4, 3840x2160@30Hz |
| VGA:1xHDMI | ||
| 4 x USB2.0 (contact pin),2xUSB 2.0 , 2x USB3.0 | ||
| 1 x RJ45 | ||
| 1xMic In and 1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:1xlvds 1920x1080@30Hz, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11 LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 170x170 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
