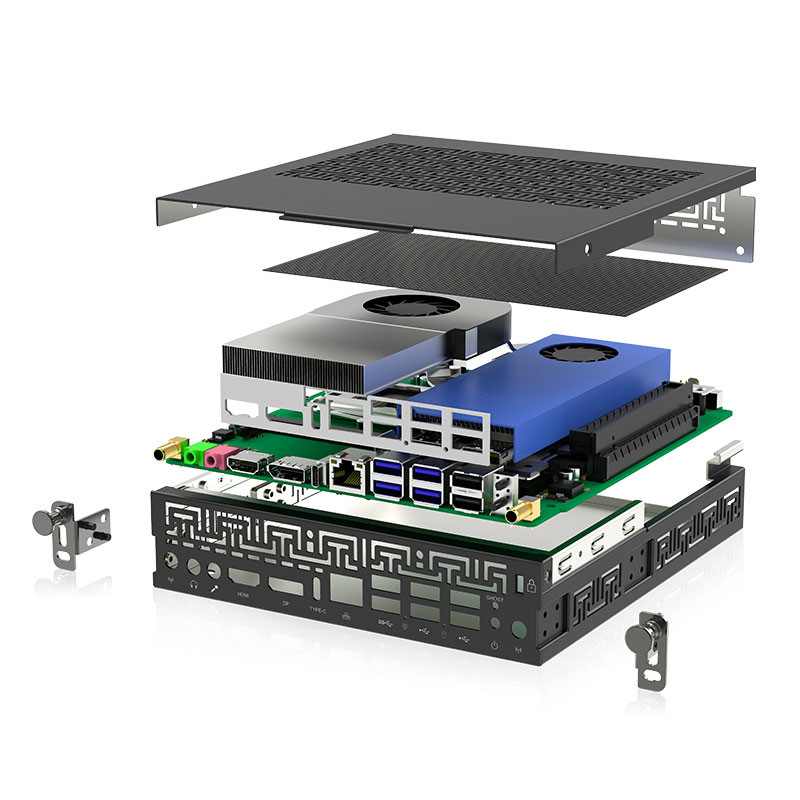

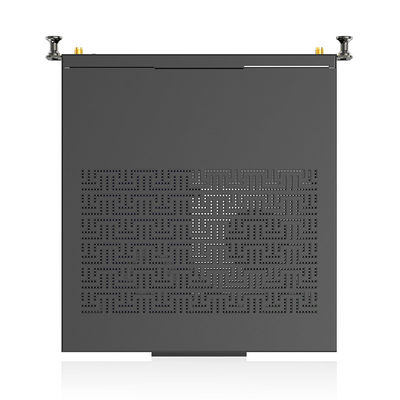

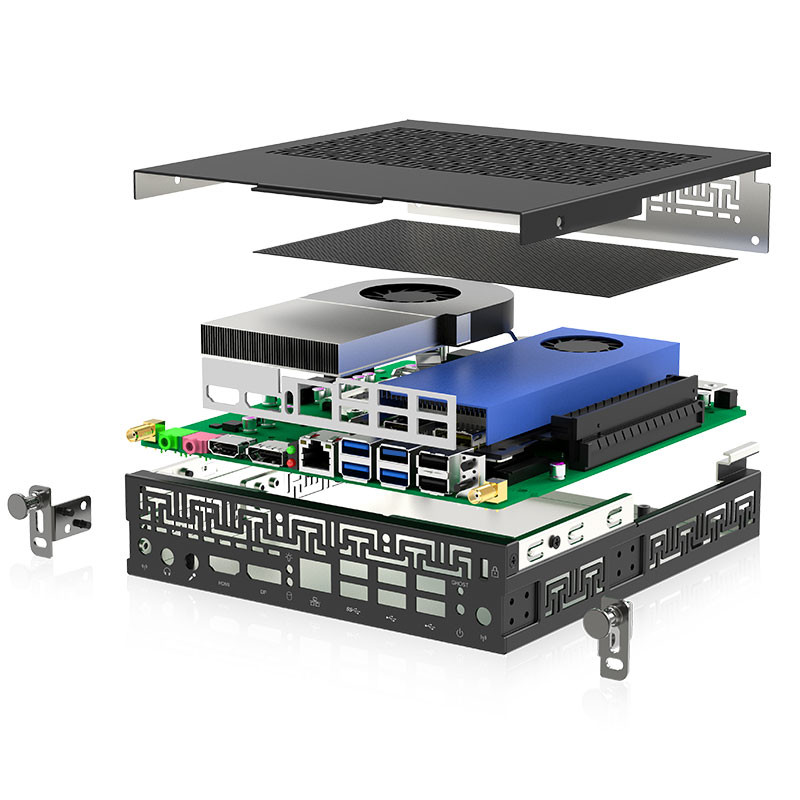

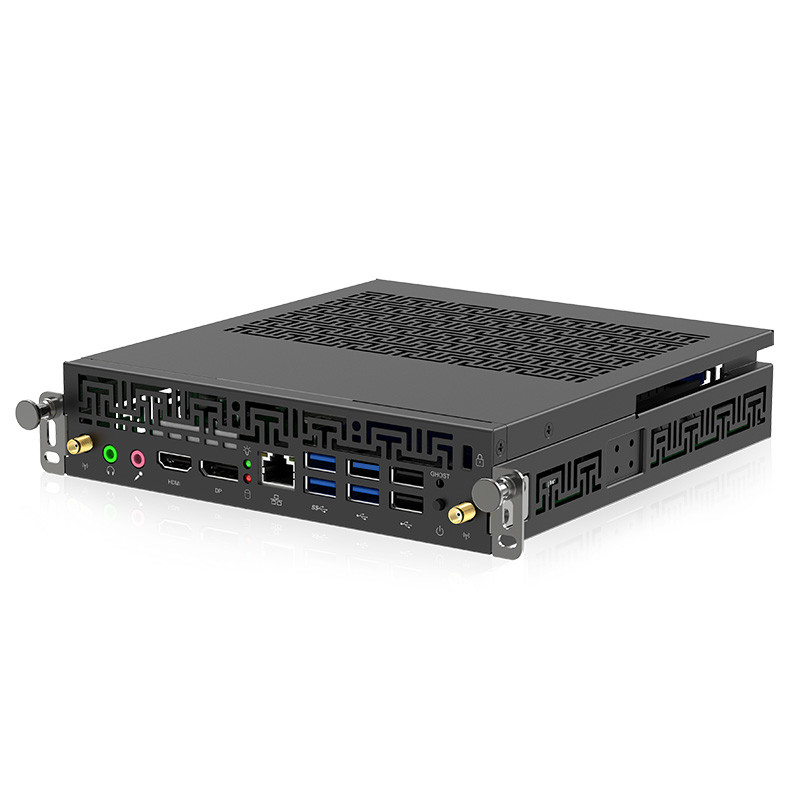

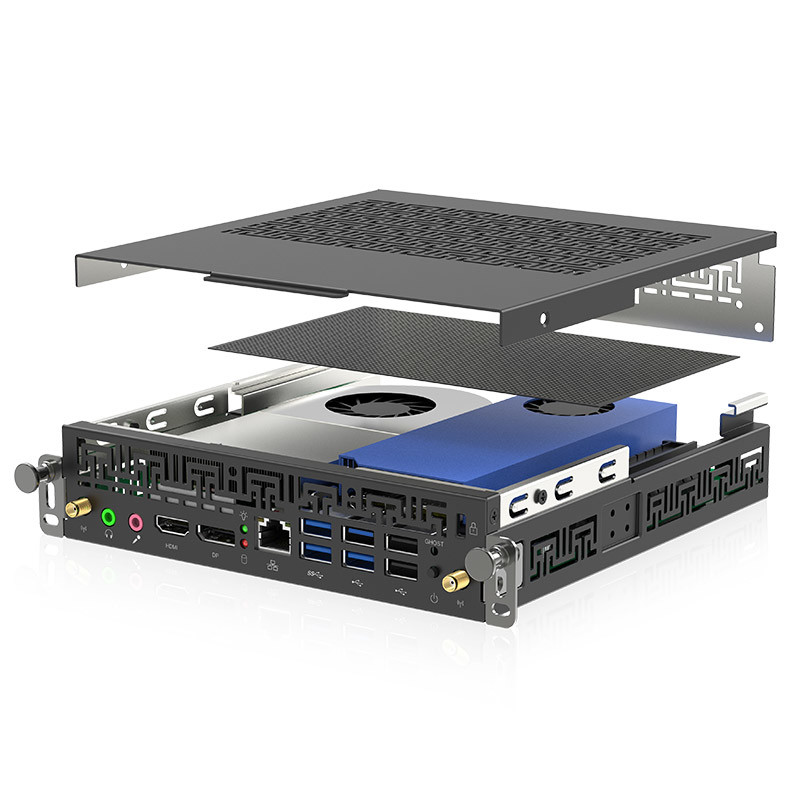

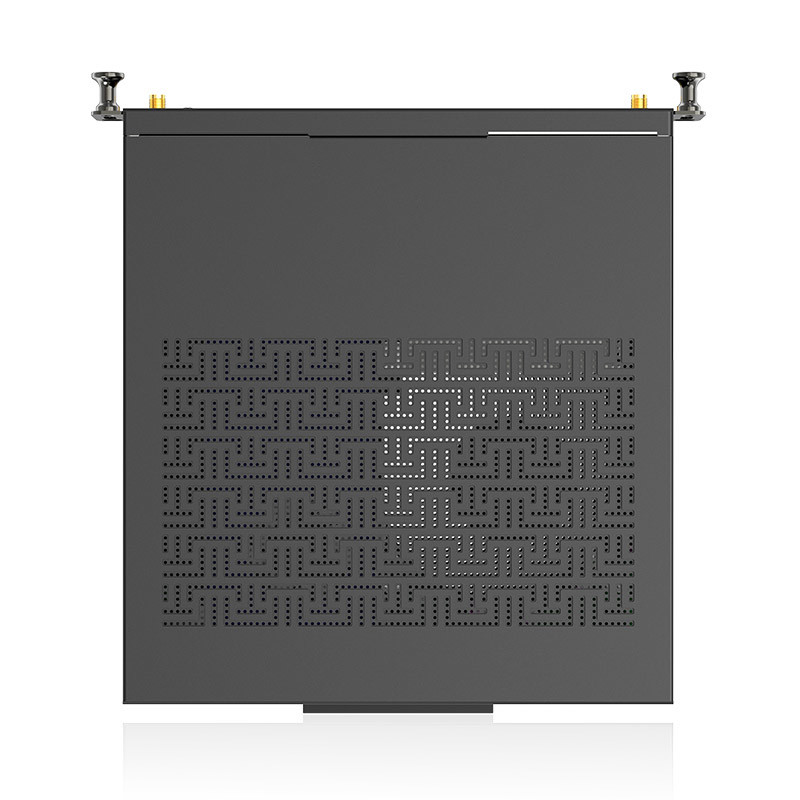

13th Gen Intel CPU 195mm Length OPS PC USB2.0x2 USB3.0x4
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | HJS/OEM |
| Certification | CE/ROHS |
| Model Number | HJS-GT-OPS-A07-I7-13th |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | 13th Gen Intel CPU | Ram | 4-64GB |
|---|---|---|---|
| Storage | M.2 2280 SSD | Interface | HDMI,DP |
| Muti Displays | Two Display | USB | USB2.0x2，USB3.0x4,Type-Cx1 |
| WIFI | M.2 2.4G/5G | OS | Win10/11 Linux |
| Size | 195x180x42MM | ||
| Highlight | 13th Gen 195mm Length OPS PC,Intel CPU 195mm Length OPS PC |
||
Product Description
Spider Series Intel Core I7 Interactive White Board OPS PC Module
ODM/OEM
We understand you might have different ideas, as one stop solution manufacturer starts from bared board to assemble line, we have all facility to make your ideas become real.
Our further service includes but not limited below:
☑ Logo
☑ Profile Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
Text us or email us, let us start our “Dream becomes true” Journey.
Spider Series Intel Core I7 Interactive White Board OPS PC Module
Products Description
Features
* Intel OPS-C standard module
* Supports Intel 10th/11th Gen processor
* 2x channel DDR4 Memory
* 1x M.2 2280 SSD slot
* 10xUSB2.0/3.0/Type-C
* M.2 2.4/5G WIFI+Bluetooth
* Displays:1 x HDMI ,1 x DP,1 x HDMI (80pin)
* Supports GT1030/GT1050/GT1060
Applications: Digital Signage, Airport, White-board for Education, Conference Room, etc.
Specification
| Processor System | CPU | Intel@RaptorLake I7-13700 CPU |
| Frequency | 2.1GHz-5.1GHz | |
| Graphics | Chipset | H610 |
| VRAM | 64GB (Max) | |
| Multi displays | Support Dual displays | |
| Interface | 1xHDMI2.0,resolution 3840x2160 4K60Hz | |
| 1xDP1.4,resolution 7680x4320 8K60Hz | ||
| 1x80pinCon. HDMI2.0, resolution3840x2160 4K60Hz(supprots Discrete graphics) | ||
| Memory | Type | 1xSO-DIMMDDR5 |
| Max | 64GB | |
| Ethernet | Lan IC | Realtek 8111H Gigabit Ethernet |
| Interface | 10/100/1000Mbps | |
| Connector | 1 x RJ45 | |
| Wireless | Type | PCIEx16 |
| Interface | GT1030/GT1050/GT1060 | |
| Storage | Type | SSD |
| Interface | 1 x M.2 2280 | |
| IO Interface | Front panel | 1xHDMI2.0, 3840x2160 4K60Hz |
| 1xDP1.4, 7680x4320 8K60Hz | ||
| 2xUSB 2.0 , 4x USB3.0,1xType-C | ||
| 1 x RJ45 | ||
| 1xMic In ,1xLine Out | ||
| 2xWi-Fi Antena | ||
| 1 x Power button, 1 x Reset button | ||
| Rear panel | 1x80pin:HDMI2.0, 2 USB2.0 , 1 USB3.0, TTL, AUDIO out | |
| 1x2.5/5.5 DC IN JACK | ||
| Software | OS Supports | WINDOWS 10/11LINUX |
| Watchdog | Support | |
| vPro/AMT | N/A | |
| TPM | N/A | |
| Power | Power input | 12/19VDCIN, 2.5/5.5 DC Jack |
| Size | 119x180x30 mm | |
| Environment | Operating Temp. | 0~50℃ |
| Operating Humidity | 5%〜95% non-condensing | |
| Storage Temp. | -20~70℃ | |
| Storage Humidity | 5%~95% non-condensing |
